Eight common failures and methods of fire pumps (一)

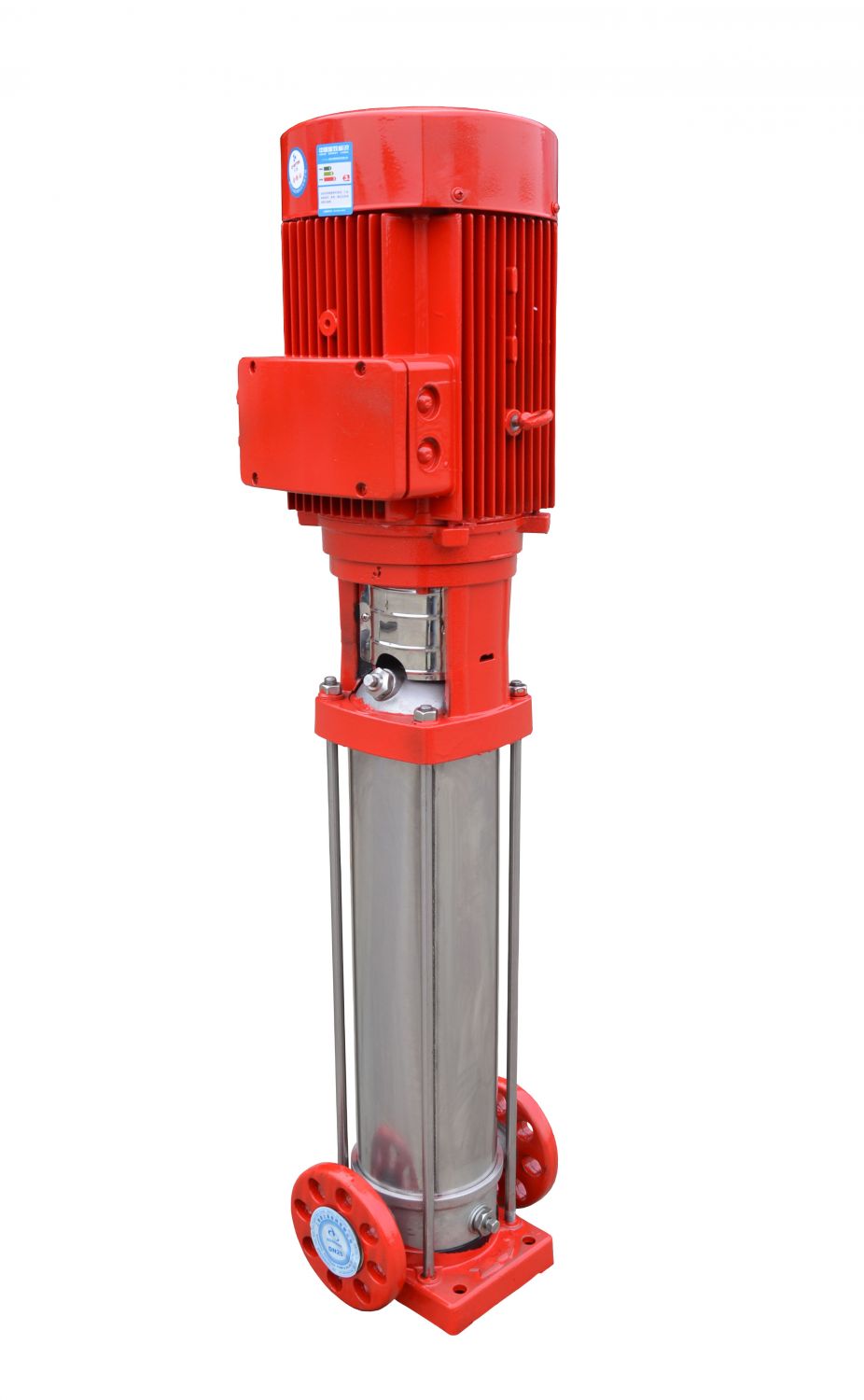

Fire pump is an important facility to guarantee fire safety, understand the problem of fire pumps, and targeted to get rid of these problems, in order to effectively make sure the long life of fire pump.Let’s take a look at the eight common problems of fire pumpFirstFire pumpshave abnormal vibration1. Cause analysis: The shaft of fire pump and motor is not in one lineSolution: adjustment, aligning shaft of fire pump and motor.2. Cause analysis: Fire pump shaft bendingSolution: Remove and straightening, or change a new one.3. Cause analysis: Impeller imbalanceSolution: Remove and find balance
SecondFire pump no water outfire pump don’t have water come out1. Cause analysis: water pipe too small, pipe losses too largeSolution: Change suitable pipe2. The actual head exceed designed headChoose fire pump again3. Cause analysis: suction pipe or pump has air inside.Solution: check the suction pipe and exhaust air4. Cause analysis: Suction head exceed the designed suction headSolution: install fire pump according to the rated suction5. Cause analysis: transfer hot, volatile liquidSolution: reduce the head or use back up into installation6. Cause analysis: pump direction is oppositeSolution: revise the direction7. Cause analysis: suction pipe, discharge pipe and pump inlet was partially clogged by impurities.Solution: check and clean up.ThirdSeriously leakage of mechanical seal of fire pump1. Cause analysis: fixing screws loose, so that spring out of actionSolution: fastening screw or re-adjusting spring2. Cause analysis: spring pressure insufficientSolution: re-adjust the amount of compression spring or change the spring3. Cause analysis: stationary ring assembly skewSolution: reinstall fire pump stationary ring4. Cause analysis: Wrap or static ring face corrosion, wear or scratchesSolution: repair or replace the bad ring stationary ring5. Cause analysis: bushings precision and finish is not enough, the impact of the axial movement of the movable ringSolution: In other qualified precision bushings6. Cause analysis: impurities, foreign bodies or medium Crystallization axial movement of ring or support moving between the end face of the stationary ringSolution: Eliminate impurities, foreign bodies and crystallization, thoroughly clean the sealing element7. Cause analysis: The seal ring assembly oblique volume deformation or corrosionSolution: reinstall or replace fire pump seal ringForthFire pump motor overheating1. Cause analysis: pressure tight packing gland or mechanical seal spring tune too tightSolution: re-adjust gland or mechanical seal spring compression.2. Cause analysis: use the Range (flow, head) more than the fire pump design requirementsSolution: by Series spectrum chooses the right motor.3. Cause analysis: Fire pump assembly quality is poor; there is friction with the Fire Department or the motor shaft misalignmentSolution: check the assembly quality, eliminate assembly failure.4. Cause analysis: media accounted for more than the fire pump motor configurationSolution: configure the appropriate fire pump motor.
