119PUMPSINDUSTRIAL PUMPS

Chemical Pump

G Single Screw Pumps

Performance summary

Flow
0.8~150m3/h
Caliber
25~250mm
Pressure
0.6~1.2MPa
Power
0.75~37kW
Speed
400~960r/min
Working Pressure
1.6MPa

Values are from archived product information. Confirm the current model datasheet before selection.

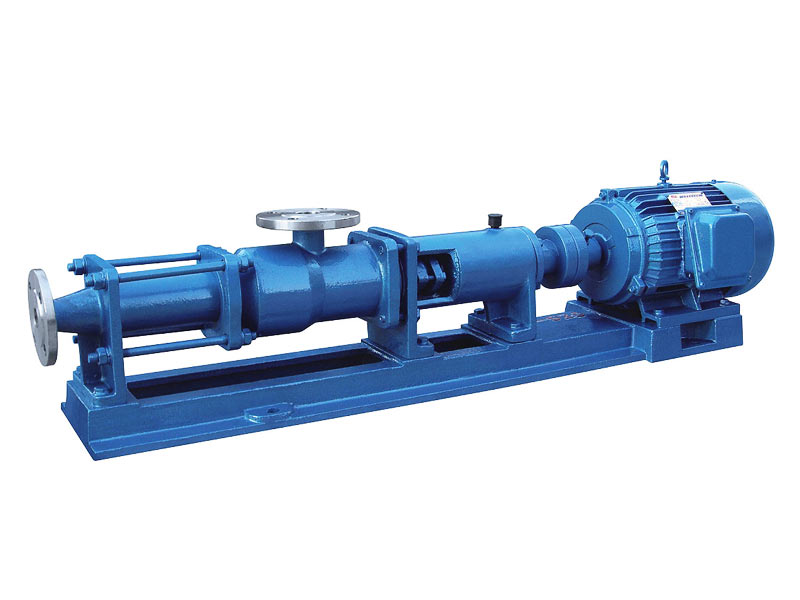

Product Introduction of G Single Screw Pumps
G Single Screw Pumps is an enclosed screw pump with inner gearing, a kind of rotor positive-displacement pump. As this kind of pump is characterized by being adaptable for the medium, stable flow, good suction performance and small pressure pulsation, it can transfer very viscous media or those containing hard suspended or solid grains or fiber apart from various flowing media. Besides, it boasts good adjusting performance, wide range and high efficiency. Therefore, it is widely applied in various industries like environmental protection, shipping, petroleum, pharmacy, household chemical, food, brewage, construction, mining, chemistry, printing, paper making, power plants and boilers.
