119PUMPSINDUSTRIAL PUMPS

Chemical Pump

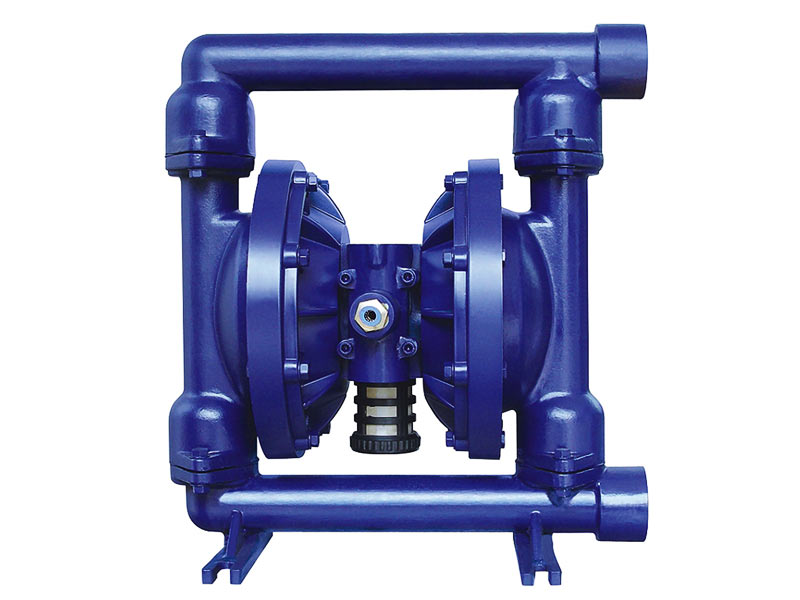

QBY Air-operation Diaphragm Pump

Performance summary

Flow
16~480L/min
Caliber
10~100mm
Max Pressure
6.9bar
Solid Diameter
1~10mm
Air Consumption
300~1500L/min
Medium Temperature
<90°C

Values are from archived product information. Confirm the current model datasheet before selection.

Product Introduction of QBY air-operation diaphragm pump
QBY air-operation diaphragm pump can widely used in chemical, pharmaceutical, oil, food, electroplating , ceramics, medical, electronics and other industries transport containing particles, high viscosity, volatile, flammable, rare, toxic, corrosive liquids (including chemicals, powder, food additives, rubber, paints, pharmaceuticals, slurry slag, waste, etc.) as well as other needs self-absorption of the occasion. For delivery of liquid pumped exhaust can, but also for a variety of solid-liquid separation equipment pre-delivery pressure device.
