Diesel Fire Pump

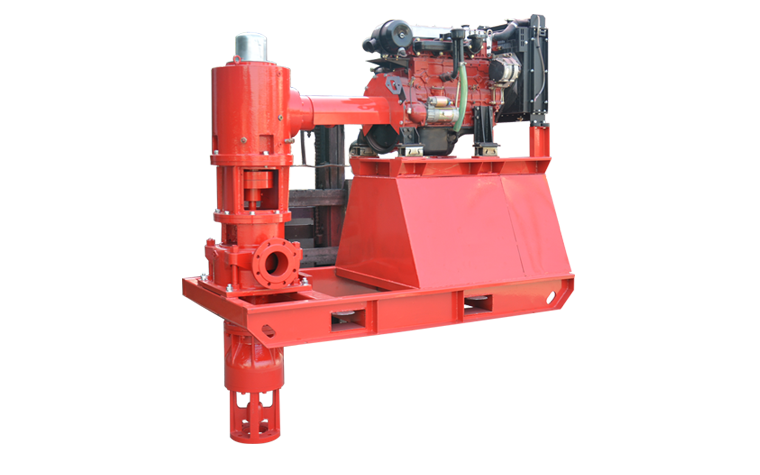

Vertical Turbine Diesel Engine Fire Pump

Performance summary

Flow
238-3000 gpm
Head
2-21 bar
Caliber
100-150mm
Power
11-360kW
Speed
1500r/min
Working Pressure
1.6MPa

Values are from archived product information. Confirm the current model datasheet before selection.

Vertical Turbine Diesel Engine Fire Pump

The vertical turbine fire pump is circulating water pump, and its over-flow medium is sea water. The function is to provide flushing water for the drum-type rotating filter to ensure that impurities and sea creatures can be washed away in time, thus bring clean seawater downstream. It can use with electric motor and also diesel engine.


Applications of Vertical Turbine Diesel Engine Fire Pump

JC vertical turbine pump is used for pumping normal temperature water and warm water under 100°C from wells, river, lake , sea.
Type JCW are used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

Using Instruction
1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of the fire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.
