Diesel Fire Pump
Fire Booster Pump

Performance summary
- Flow
- 66~31718gpm / 4~2000 l/s
- Head
- 1-6.5 bar / 15-94 psi
- Power
- 4-450 kw
- Speed
- 1450-3000 r/min
Values are from archived product information. Confirm the current model datasheet before selection.

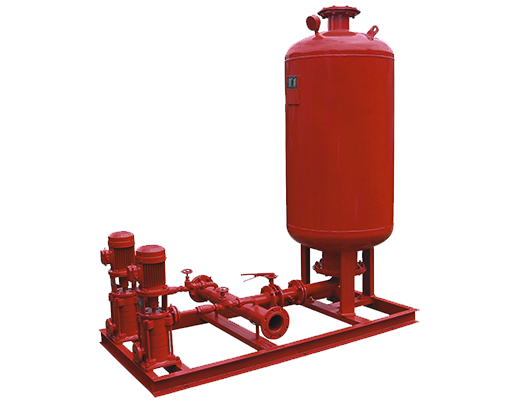

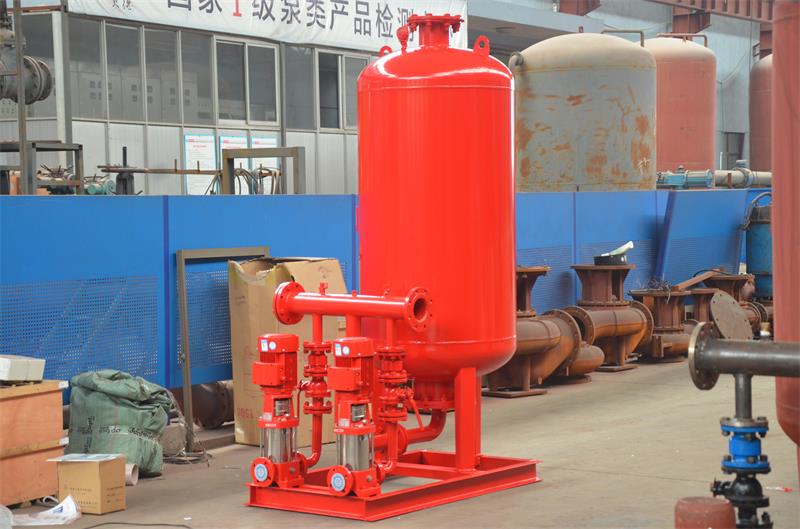

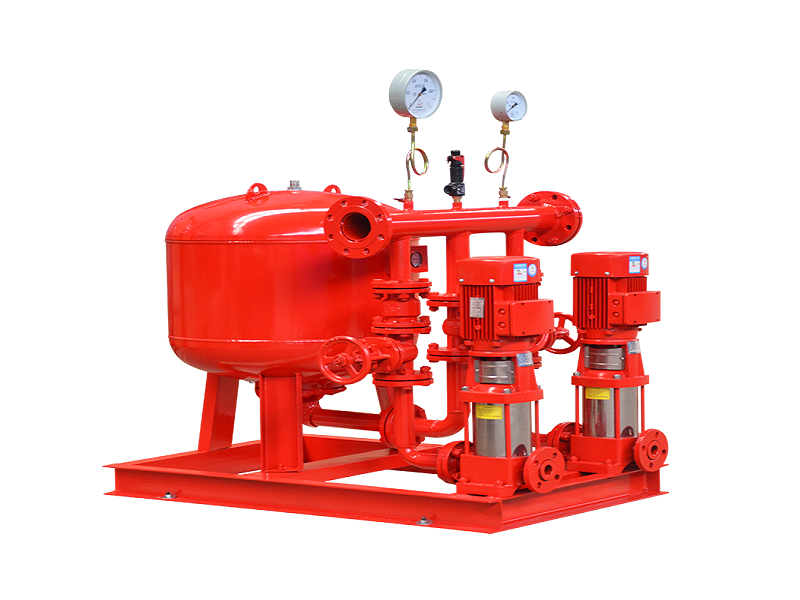

WXZQ series fire pneumatic water supply equipment is composed of fire pressure stabilizing device, fire pump
and electric control system. As a complete set of equipment, it can meet all technical specifications of automatic
fire water supply. In addition, it can accept and process all kinds of fire signals, replace the fire control center,
and send out all kinds of operation and fault alarm signals.
Applications
As a part of WXZQseries complete equipment, the design purpose of the fire pressure stabilizing device is as
follows:
1. It is used to maintain the fire water pressure required by the pipe network at ordinary times
2. It is used to meet the water pressure and water volume requirements of fire-fighting equipment and facilities during the start-up of fire-fighting main pump
3. It is used to automatically control the start of main fire pump
As a part ofWXZQseries complete equipment, the design purpose of the fire pressurestabilizing device is as
follows:
1. It is used to maintain the fire water pressure required by the pipe network at ordinarytimes
2. It is used to meet the water pressure and water volume requirements of fire-fightingequipment and facilities during the start-up of fire-fighting main pump
3. It is used to automatically control the start of main fire pump
