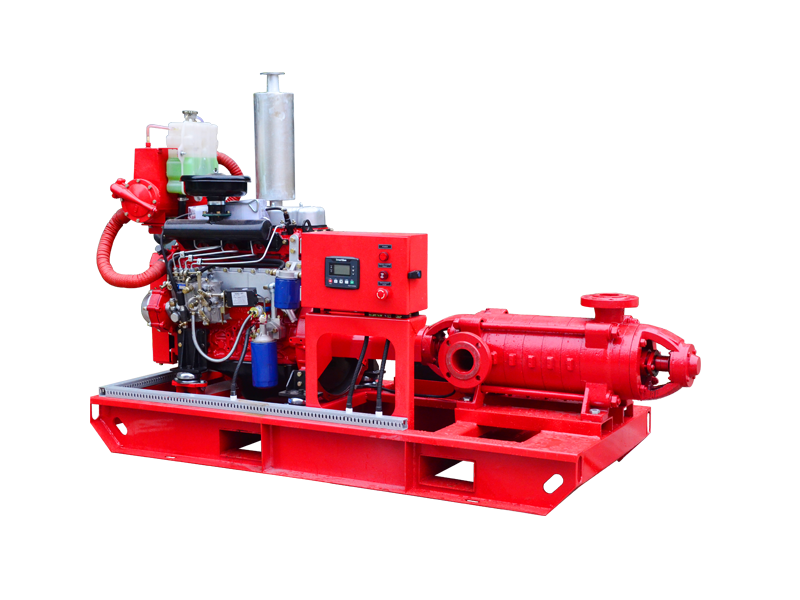

XBC-D Diesel Multistage Fire Pump
Flow:238-1000 gpm / 15-63 l/s
Head:2-21 bar / 29-304.5 psi
Caliber:100-150mm
Power:11-160kW
Speed:1500r/min
Working Pressure:1.6MPa
If you want to get more product information please contact us!
XBC series diesel engine fire-fighting pump group is a new-style fire-fighting equipment developed in accordance with GB6245-98 and NEPA20 standard, and upon the fitted fire-fighting pumps (single-stage single-suction type, single-stage double-suction type and sectional multistage type), can be divided into XBC-IS, XBC-S and XBC-D three sub series. The equipment has a wide range of pressure and temperature and can be used for almost every occasion necessary for fire-fighting.
The XBC-D Multistage Diesel Fire Pump is an excellent product domestic or imported, features good starting performance, strong overload capacity, compact structure, easy maintenance and use and high degree of automation. The XBC-D Multistage Diesel Fire Pump is really a fire-fighting one advanced and reliable in performance.
The XBC-D Multistage Diesel Fire Pump is an excellent product domestic or imported, features good starting performance, strong overload capacity, compact structure, easy maintenance and use and high degree of automation. The XBC-D Multistage Diesel Fire Pump is really a fire-fighting one advanced and reliable in performance.
1.Applications
High-rise hotel, high public places;
High-rise office buildings, high-rise residential;
Chemical, oil refining, metallurgical, enterprises;
Energy, medicine and military, enterprises.
2. Using Instruction
1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of the fire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.
| ModeL | FLow(L/s) | Head(mpa) | Power(kw) | Speed (rpm) | Inlet(mm) | Outlet(mm) |
| XBD3/30-100S-400C | 30 | 0.3 | 18.5 | 1480 | 150 | 100 |
| XBD4/55-100S-260C | 55 | 0.4 | 37 | 2950 | 150 | 100 |
| XBD6.5/70-100S-260 | 70 | 0.65 | 75 | 2950 | 150 | 100 |
| XBD11.6/80-100S-320 | 80 | 1.16 | 132 | 2950 | 150 | 100 |
| XBD2.5/95-150S-350B | 95 | 0.25 | 37 | 1480 | 200 | 125 |
| XBD6/75-125S-480A | 75 | 0.6 | 75 | 1480 | 200 | 125 |
| XBD7.2/110-125S-300C | 110 | 0.72 | 110 | 2950 | 200 | 125 |
| XBD8.4/120-125S-300A | 120 | 0.84 | 160 | 2950 | 200 | 125 |
| XBD2/85-150S-350C | 85 | 0.2 | 30 | 1480 | 200 | 150 |
| XBD3.3/90-150S-450C | 90 | 0.33 | 45 | 1480 | 200 | 150 |
| XBD5/110-150S-450A | 110 | 0.5 | 90 | 1480 | 200 | 150 |
| XBD9/150-150S-570 | 150 | 0.9 | 200 | 1480 | 200 | 150 |
| XBD2.4/160-200S-340A | 160 | 0.24 | 55 | 1480 | 250 | 200 |
| XBD3.4/150-200S-410B | 150 | 0.34 | 75 | 1480 | 250 | 200 |
| XBD6.8/180-200S-530A | 180 | 0.68 | 180 | 1480 | 250 | 200 |
| XBD8.2/200-200S-530 | 200 | 0.82 | 250 | 1480 | 250 | 200 |
| XBD2.2/220-250S-390C | 220 | 0.22 | 75 | 1480 | 300 | 250 |
| XBD3.4/230-250S-470C | 230 | 0.34 | 110 | 1480 | 300 | 250 |
| XBD4.3/280-250S-470A | 280 | 0.46 | 200 | 1480 | 300 | 250 |
| XBD10/300-250S-610 | 300 | 1 | 400 | 1480 | 300 | 250 |
| XBD3/370-300S-450C | 370 | 0.3 | 160 | 1480 | 400 | 300 |
| XBD5.1/450-300S-450 | 450 | 0.51 | 315 | 1480 | 400 | 300 |
| XBD8/430-300S-550 | 430 | 0.8 | 450 | 1480 | 400 | 300 |
| XBD12/430-300S-710A | 430 | 1.2 | 710 | 1480 | 400 | 300 |
| MORE SPECIFICATIONS PLEASE CONTACT US. | ||||||
