Diesel Fire Pump

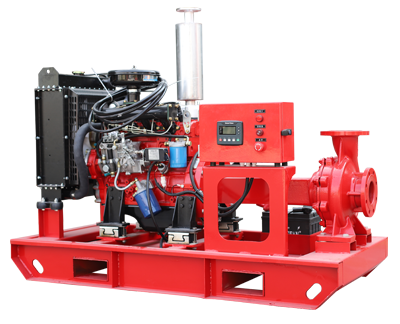

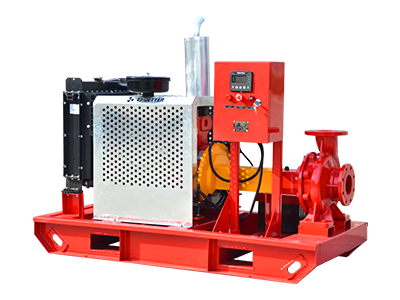

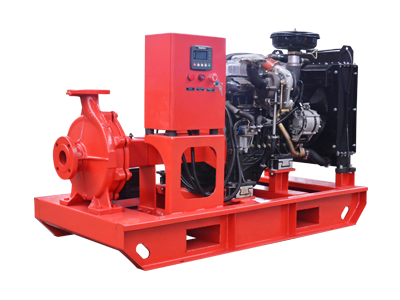

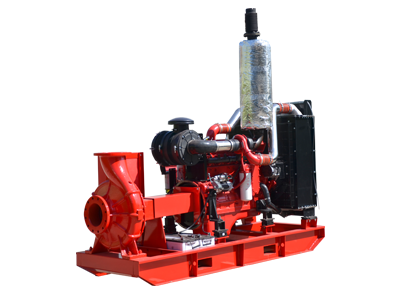

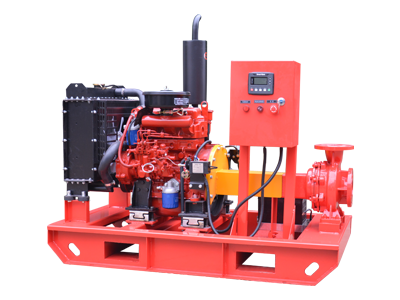

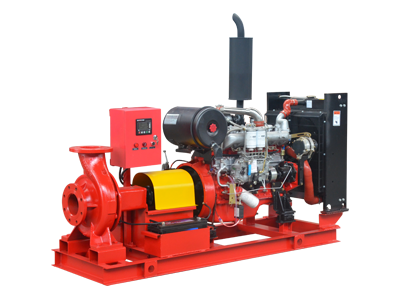

XBC-IS Diesel Engine End Suction Fire Pump

Performance summary
- Flow
- 80.0-2500 gpm / 5-158 l/s
- Head
- 2-16 bar / 29-232 psi
- Caliber
- 50-250mm
- Power
- 3-220kW
- Speed
- 1500-2600r/min
- Working Pressure
- 1.6MPa
Values are from archived product information. Confirm the current model datasheet before selection.

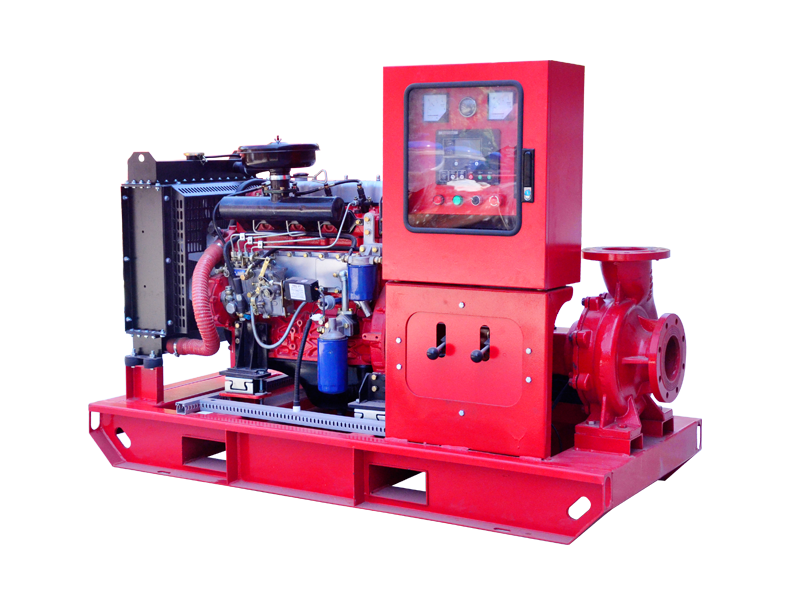

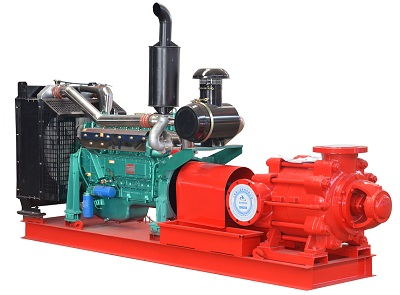

XBC-IS Diesel Engine Fire Fighting Pump is a new-style fire-fighting equipment developed in accordance with GB6245-98 and NEPA20 standard, and upon the fitted fire-fighting pumps (single-stage single-suction type, single-stage double-suction type and sectional multistage type), can be divided into XBC-IS, XBC-S and XBC-D three sub series. The equipment has a wide range of pressure and temperature and can be used for almost every occasion necessary for fire-fighting.







XBC-IS diesel engine fire pump set is suitable for fire water supply and emergency water supply in various occasions such as warehouses, docks, airports, petroleum, chemical industry, power plants, liquefied gas, textiles, ships, oil tankers, etc.
Working Conditions
1. After purchasing a diesel engine fire pump, if it is found that the bottom valve on this tool is not suitable, in some cases it will be larger, in some cases it will be smaller, then it is the problem of the fire pump manufacturer, and it cannot be used for It is convenient to continue to use it. This kind of bottom valve should be carefully checked to see if it does not match the machine. If so, it is necessary to discuss with the manufacturer, preferably a bottom valve of appropriate size.2. If the gap of the impeller is too large during the use of this tool, then it is necessary to check whether the gap is normal, which is also relatively easy to appear during the use of the tool. When this happens, check the cause and take appropriate measures.3. If the diameter of the impeller is too small during use, it will definitely have a great impact on the work progress during the work process. Of course, it cannot be said that this impeller is completely unqualified, but it is used There must be some impact in the process, so the impeller must be replaced, so that the machine can work .| Model | Flow(m3/h) | Head(mpa) | Power(kw) | Speed (rpm) | Caliber (mm) |
| XBC2/5-IS | 2600 | 5 | 0.2 | 3 | 65/65 |
| XBC8/5-IS | 2000 | 5 | 0.8 | 7.5 | 50/50 |
| XBC6/10-IS | 2000 | 10 | 0.6 | 22 | 100/100 |
| XBC3/15-IS | 2600 | 15 | 0.3 | 11 | 80/80 |
| XBC10/15-TSWA | 1500 | 15 | 1 | 37 | 100/100 |
| XBC5/20-IS | 2000 | 20 | 0.5 | 22 | 125/125 |
| XBC8/20-DA | 1500 | 20 | 0.8 | 30 | 100/100 |
| XBC2.0/25(30)-D | 1500 | 25/30 | 0.2 | 11 | 125/125 |
| XBC9.0/25(30)-D | 1500 | 25/30 | 0.9 | 55 | 125/125 |
| XBC14.0/25(30)-D | 1500 | 25/30 | 1.4 | 75 | 125/125 |
| XBC8/35(40/45)-DA | 1500 | 35/40/45 | 0.8 | 75 | 150/150 |
| XBC21.0/35(40/45)-DA | 1500 | 35/40/45 | 2.1 | 160 | 150/150 |
| XBC2/50(55/60)-W | 1500 | 50/55/60 | 0.2 | 18.5 | 150/150 |
| XBC15/50(55/60)-D | 1500 | 50/55/60 | 1.5 | 132 | 150/150 |
| XBC5/80(85/90)-W | 1500 | 80/85/90 | 0.5 | 75 | 200/200 |
| XBC8/80(85/90)-W | 1500 | 80/85/90 | 0.8 | 90 | 200/200 |
| XBC1.6/80(85/90)-W | 1500 | 80/85/90 | 1.6 | 200 | 200/200 |
| XBC2/100(110/120)-W | 1500 | 100/110/120 | 0.2 | 45 | 250/250 |
| XBC6/100(110/120)-W | 1500 | 100/110/120 | 0.6 | 110 | 200/200 |
| XBC13/100(110/120)-W | 1500 | 100/110/120 | 1.3 | 220 | 250/250 |
| XBC5(6)/100(110/120)-S | 1500 | 100/110/120 | 0.5 | 132 | 250/150 |
| XBC6(7/8)/180(190/200)-S | 1500 | 180/190/200 | 0.6 | 315 | 250/150 |
| XBC5/250-S | 1500 | 250 | 0.5 | 220 | 250/200 |
| XBC7/300-S | 1500 | 300 | 0.7 | 315 | 300/250 |
| XBC10/300-S | 1500 | 300 | 1 | 630 | 350/250 |
| XBC7/350-S | 1500 | 350 | 0.7 | 355 | 300/250 |
| XBC12/350-S | 1500 | 350 | 1.2 | 710 | 350/250 |
| MORE SPECIFICATIONS PLEASE CONTACT US. | |||||
