Diesel Fire Pump

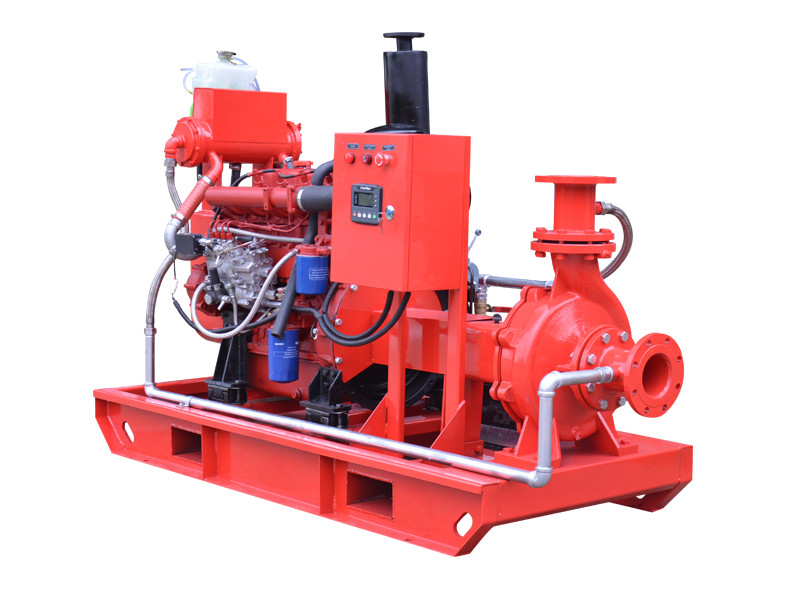

XBC-S Heat Exchange Diesel End Suction Fire Pump

Performance summary

Flow
80.0-2500 gpm / 5-158 l/s
Head
2-16 bar / 29-232 psi
Caliber
50-250mm
Power
3-220kW
Speed
1500-2600r/min
Working Pressure
1.6MPa

Values are from archived product information. Confirm the current model datasheet before selection.

XBC-S Heat Exchange Diesel End Suction Fire Pump

XA series single-stage centrifugal pump is the earliest single-stage single-suction centrifugal pump product launched by(China)Technology Group
This product combines the advantages of similar productsin Chinaand abroad, and is designed with excellent hydraulic model.
Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operation cost of pumps in various applications.




Main Features

Meet high standards

XA single-stage single-suction centrifugal pump conforms to international standards: ISO9908, Technical Specification for Centrifugal Pumps,
Class III (Technical Specification for Centrifugal Pumps, Class III), mainly based on German DIN standard.


High-efficiency volute

The pump body is in the form of high-efficiency volute.
The flange connection size is in accordance with GB/T 17241.6-1998 (cast iron) and GB/T 9113.1-2000 (steel) PN1.6MPa,
and can be used with the following standard flanges. : BS 4504: 1989, ISO 7005.1: 1992, DIN 2533: 1976, ISO 7005.2: 1988.

Structural Design for Easy Installation
The rear open cover design can replace the rotor components without dismantling the pipeline.
Replaceable seal ring. The wear of the impeller ring can be achieved only by replacing the sealing ring,
so as to restore thebestoperating condition of the pump and achieve low-cost operation.

Ensure high reliability at high speed and heavy load operation
Cantilever ratio is small. The cantilever ratio of the rotor ranges from 0.66 to 1.1, with good rigidity and small deflection.
Its rigidity is much than that of the same type of single-stage centrifugal pump (the cantilever ratio of IS pump is between 0.97 and 1.48).
Further Improve the Stability of Pump Operation
Hydraulic balance design and combination of impeller dynamic and static balance
