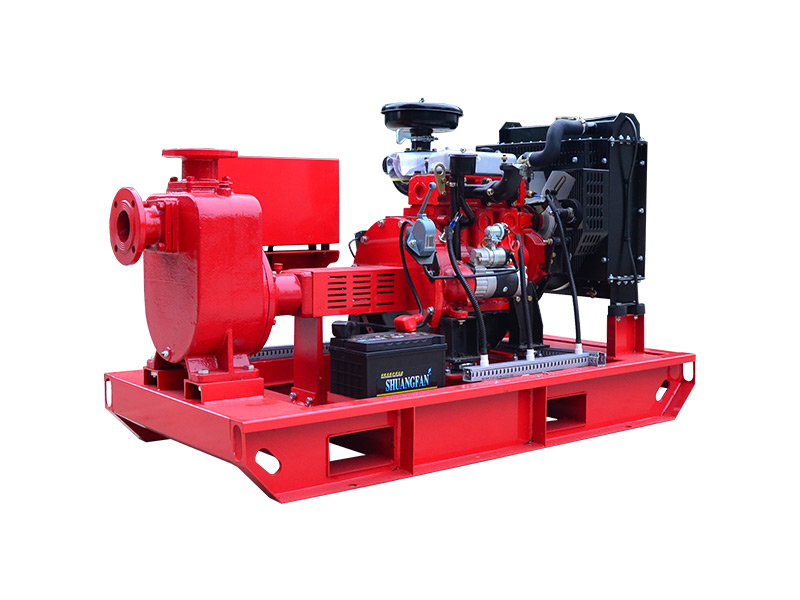

ZWC Diesel Engine Self Priming Pump for Irrigation

Performance summary
- Flow Range
- 5-80L/s
- Pressure
- 0.2~0.8MPa
- Matching Power
- 4~132kW
- Working Pressure
- ≤1.0MPa
- Caliber
- 50-200mm
Values are from archived product information. Confirm the current model datasheet before selection.
ZWC diesel engine self-priming sewage pump(diesel engine irrigation pump), is a diesel-powered pump. The pump has self-priming function, can transport clean water, rain with sediment, etc. It can be widely used in farmland irrigation, flood prevent, emergency rescue and so on.
It can be used for non -power areas of agricultural irrigation, municipal engineering, drought and drainage, the installation of two or four wheel mobile chassis or outdoor rain shell, to adapt to the field of mobile.

It can be used for non -power areas of agricultural irrigation, municipal engineering, drought and drainage, the installation of two or four wheel mobile chassis or outdoor rain shell, to adapt to the field of mobile.

| Working Principle: | Centrifugal, Self-priming |
| Main applications: | Water |
| Driver: | Electric motor, Diesel engine |
| Power Specs: | 110/220/230V 1phase; 220/380/400/415V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, Stainless Steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0mm |
| Maximum drive rating: | 132KW(180HP) |
| Maximum caliber: | 300mm(12inch) |
| Maximum head: | 80m(262.4ft) |
| Maximum suction: | 6.5m(21.3ft) |
| Flow rate range: | 3.2-600m3/h(14.1-2640US.GPM) |
| Working Principle: | Centrifugal, Self-priming |
| Main applications: | Water |
| Driver: | Electric motor, Diesel engine |
| Power Specs: | 110/220/230V 1phase; 220/380/400/415V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, Stainless Steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0mm |
| Maximum drive rating: | 132KW(180HP) |
| Maximum caliber: | 300mm(12inch) |
| Maximum head: | 80m(262.4ft) |
| Maximum suction: | 6.5m(21.3ft) |
| Flow rate range: | 3.2-600m3/h(14.1-2640US.GPM) |
Features:
1. ZXself priming pumpdiesel engine driven works for water or medium similar to water that viscosity below 5°E and temperature below 80°C(176°F).2. It is compact, easy to operate, running stable, easy to maintain, efficient, with long service life and large suction capacity.
3. The water pump with self priming ablity could work without bottom valve in channel but with the quantitative lead liquid that kept in pump before operation.
4. Pump may equipped with diesel engine for outdoor and wild water supply and drainage.
5. Widely used in city environmental protection , construction, fire fighting, chemical industry, pharmacy, dyes, dyeing, brewing, electric power, electric plating, paper-making, industrial and mineral rinse, equipment cooling and so on.

A self-priming pump is able to overcome the problem of air binding by mixing air with water. After it gets rid of the air, the pump will continue to move water like a standard centrifugal pump.It is important to note that self-priming pumps can’t operate without water.Self-priming pumps can handle a variety of fluids and they do well with slurries, corrosive fluids, and solids.Solids handling is one of its most important advantages, as some self-priming pumps can handle solids up to 3 inches.Another advantage, when compared to a submersible pump, is its ability to continue pumping fluid while pump is still situated out of the pit.
| Model | Caliber | Capacity | Head | Power | Speed | Suction |
| (mm) | (m3/h) | (m) | (kw) | (r/min) | (m) | |
| 25ZX3.2-20 | 25 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
| 25ZX3.2-32 | 25 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
| 32ZX3.2-20 | 32 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
| 32ZX3.2-32 | 32 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
| 32ZX3.2-50 | 32 | 3.2 | 50 | 3 | 2900 | 6.5 |
| 40ZX6.3-20 | 40 | 6.3 | 20 | 1.5 | 2900 | 6.5 |
| 40ZX6.3-32 | 40 | 6.3 | 32 | 2.2 | 2900 | 6.5 |
| 40ZX10-40 | 40 | 10 | 40 | 4 | 2900 | 6.5 |
| 40ZX6.3-50 | 40 | 6.3 | 50 | 4 | 2900 | 6.5 |
| 50ZX15-12 | 50 | 15 | 12 | 1.5 | 2900 | 6.5 |
| 50ZX18-20 | 50 | 18 | 20 | 2.2 | 2900 | 6.5 |
| 50ZX12.5-32 | 50 | 12.5 | 32 | 3 | 2900 | 6.5 |
| 50ZX12.5-40 | 50 | 12.5 | 40 | 4 | 2900 | 6.5 |
| 50ZX12.5-50 | 50 | 12.5 | 50 | 5.5 | 2900 | 6.5 |
| 50ZX20-30 | 50 | 20 | 30 | 4 | 2900 | 6.5 |
| 50ZX14-35 | 50 | 14 | 35 | 4 | 2900 | 6.5 |
| 50ZX10-40 | 50 | 10 | 40 | 4 | 2900 | 6.5 |
| 50ZX15-60 | 50 | 15 | 60 | 7.5 | 2900 | 6.5 |
| 50ZX20-75 | 50 | 20 | 75 | 11 | 2900 | 6.5 |
| 65ZX30-15 | 65 | 30 | 15 | 3 | 2900 | 6.5 |
| 65ZX25-32 | 65 | 25 | 32 | 5.5 | 2900 | 6 |
| 65ZX25-50 | 65 | 25 | 50 | 7.5 | 2900 | 6 |
| 65ZX25-70 | 65 | 25 | 70 | 15 | 2900 | 6 |
| 80ZX35-13 | 80 | 35 | 13 | 3 | 2900 | 6 |
| 80ZX43-17 | 80 | 43 | 17 | 4 | 2900 | 6 |
| 80ZX40-22 | 80 | 40 | 22 | 5.5 | 2900 | 6 |
| 80ZX50-20 | 80 | 50 | 20 | 5.5 | 2900 | 6 |
| 80ZX50-25 | 80 | 50 | 25 | 7.5 | 2900 | 6 |
| 80ZX50-32 | 80 | 50 | 32 | 7.5 | 2900 | 6 |
| 80ZX50-40 | 80 | 50 | 40 | 11 | 2900 | 6 |
| 80ZX60-55 | 80 | 60 | 55 | 18.5 | 2900 | 6 |
| 80ZX60-70 | 80 | 60 | 70 | 22 | 2900 | 6 |
| 100ZX80-20 | 100 | 80 | 20 | 11 | 2900 | 6 |
| 100ZX100-20 | 100 | 100 | 20 | 11 | 2900 | 6 |
| 100ZX100-32 | 100 | 100 | 32 | 15 | 2900 | 6 |
| 100ZX100-40 | 100 | 100 | 40 | 18.5 | 2900 | 6 |
| 100ZX100-50 | 100 | 100 | 50 | 22 | 2900 | 6 |
| 100ZX100-65 | 100 | 100 | 65 | 30 | 2900 | 6 |
| 100ZX70-75 | 100 | 70 | 75 | 30 | 2900 | 6 |
| 150ZX180-28 | 150 | 180 | 28 | 30 | 2900 | 6 |
| 150ZX170-55 | 150 | 170 | 55 | 45 | 2900 | 5 |
| 150ZX170-65 | 150 | 170 | 65 | 55 | 2900 | 5 |
| 150ZX160-80 | 150 | 160 | 80 | 55 | 2900 | 5 |
| 200ZX400-32 | 200 | 400 | 32 | 55 | 1450 | 5 |
| 200ZX280-63 | 200 | 280 | 63 | 90 | 1450 | 5 |
| 200ZX350-65 | 200 | 350 | 65 | 110 | 1450 | 5 |
| 250ZX550-32 | 250 | 550 | 32 | 75 | 1450 | 5 |
| 250ZX400-50 | 250 | 400 | 50 | 90 | 1450 | 5 |
| 250ZX450-55 | 250 | 450 | 55 | 110 | 1450 | 5 |
| 300ZX600-32 | 300 | 600 | 32 | 90 | 1450 | 5 |
| 300ZX500-50 | 300 | 500 | 50 | 110 | 1450 | 5 |
| 300ZX550-55 | 300 | 550 | 55 | 132 | 1450 | 5 |
