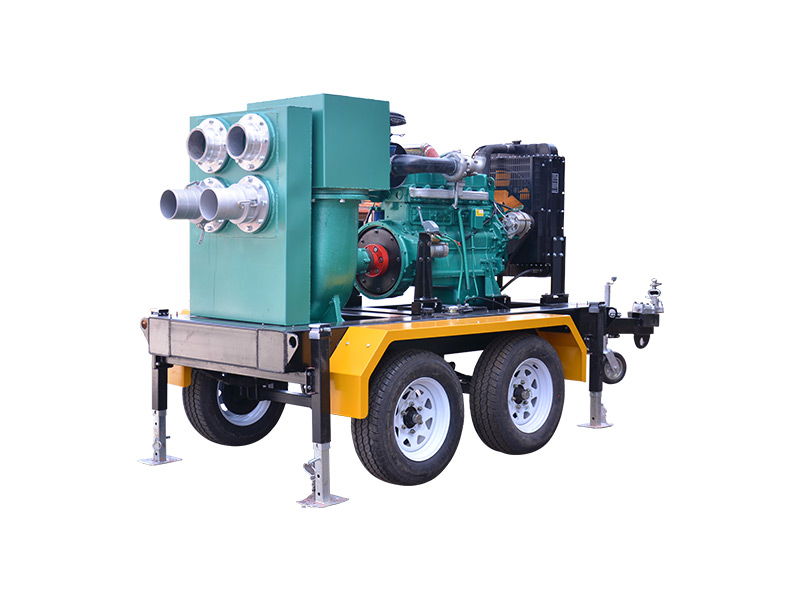

trailer mounted fire pump
Flow-mixing Mobile Pump Truck

Mobile unit configuration
- Flow
- 25-10000gpm
- Head
- <25bar
- Speed
- 1500-1800 rpm
- Frequency
- 50hz or 60hz
Values are from archived product information. Confirm the current model datasheet before selection.


Pumping Equipment: Mobile pump trucks are equipped with pumps that can handle a variety of liquids, such as water, chemicals, slurry, sewage, or concrete. The type of pump used depends on the specific application.
Storage Tanks: Some mobile pump trucks have integrated storage tanks to hold the liquid they are pumping. This allows for the transportation of a larger quantity of fluid.
Hose and Pipeline Systems: These vehicles are typically equipped with hoses, pipelines, and connectors to transfer the liquid from the source to the destination. The length and diameter of the hoses can vary based on the intended use.
Power Source: Mobile pump trucks are powered by engines, which can be diesel, gasoline, or electric, depending on the application. The engine provides the necessary power to drive the pump and other hydraulic systems.
Mobility: These vehicles are designed to be mobile and can be moved easily to different locations. They often have wheels or are mounted on a truck chassis for easy transportation.
Control Systems: Mobile pump trucks are operated by skilled personnel who use control panels or remote systems to manage the flow and pressure of the pumped liquid.
| Name | Flow-mixing Mobile Pump Truck | Brand | |
| Type | weather-proof and trailer type | Model | HW |
| Max Capacity | can be customized | Max Suction Head | can be customized |
| Inlet/Outlet | DN200 | Move mode | Two/Four-wheel |
| Driving speed | According to the performance of the pump | Engine Power | 50-575KW |
| Engine Speed | According to the performance of the pump | Fuel Tank Capacity | 120-1000L |
| Suction Pipe | 6m | Discarge Pipe | 20m |
| Rainproof Enclosure | 2mm Galvanized steel plate with polyester powder coated | ||
