Sewage pumping station
Flow:48-15860GPM
Power:0.37~160KW
Pump NO.:1~4piece
Environment Temperature:-40°C~40°C
Medium Temperature:-5°C~70°C
PH:4~10
If you want to get more product information please contact us!

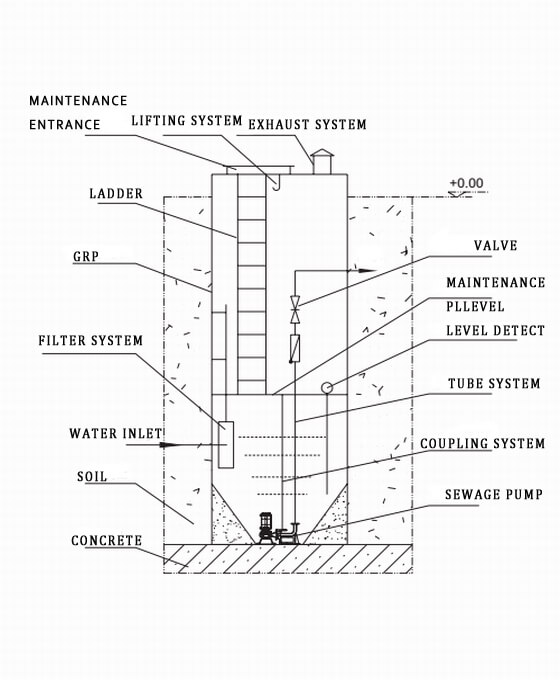

PPS integrated prefabricated pumping station is to enhance the sewage, rainwater, drinking water, wastewater and other equipment to enhance the drainage, the factory focus on design, manufacture, assembly and transported to the site to install a new generation of environmentally friendly turnkey pumping station.
Sewage pump station series products have short construction period, easy installation, small size, high efficiency, intelligent network and other modern product features. Compared with the traditional pumping station construction projects less investment can be reduced by more than half. Product quality is very reliable.
Sewage pump station series products have short construction period, easy installation, small size, high efficiency, intelligent network and other modern product features. Compared with the traditional pumping station construction projects less investment can be reduced by more than half. Product quality is very reliable.
Application Scope
1.Collecting and transporting sewage from living or rural communities
2.Sewage collection and transportation in urban sewage treatment plants
3.Collection and transportation of rainwater in urban low-lying areas
4.Construction and Reconstruction of Municipal Sewage Network
5.Transformation and expansion of old pumping station
6.Water circulation in lakes
7.Other occasions
Working condition
1. Ambient temperature should be -40 degrees C ~40
2. The relative humidity should be 25%~85%, no water.
3. Temperature should be -5 degrees C ~70 C, pH value should be 4~10
4. 380V (+ 10%) 3 phase five wire system 50HZ (+ 5%)
5. The maximum vibration acceleration of the 0.5g vibration frequency 10HZ-50HZ should not exceed 5m/s2
Weight 286-9646KG
pump number 2-4pieces
Model PPS08(40)*22(122)/0.39(128)-2
Material HT200
Effective volume 0.4-128.6m3
Start stop times 7tims/h
Height of liquid level 0.15-10.23m
1.Collecting and transporting sewage from living or rural communities
2.Sewage collection and transportation in urban sewage treatment plants
3.Collection and transportation of rainwater in urban low-lying areas
4.Construction and Reconstruction of Municipal Sewage Network
5.Transformation and expansion of old pumping station
6.Water circulation in lakes
7.Other occasions
Working condition
1. Ambient temperature should be -40 degrees C ~40
2. The relative humidity should be 25%~85%, no water.
3. Temperature should be -5 degrees C ~70 C, pH value should be 4~10
4. 380V (+ 10%) 3 phase five wire system 50HZ (+ 5%)
5. The maximum vibration acceleration of the 0.5g vibration frequency 10HZ-50HZ should not exceed 5m/s2
Weight 286-9646KG
pump number 2-4pieces
Model PPS08(40)*22(122)/0.39(128)-2
Material HT200
Effective volume 0.4-128.6m3
Start stop times 7tims/h
Height of liquid level 0.15-10.23m
| Model | Pump flow(m3/h) | Effective volume (m3) | Glass fiber reinforced plastic diameter (m) | Glass fiber reinforced plastic level height (m) | Glass fiber reinforced plastic height (m) | Glass fiber reinforced plastic weight(kg) |
| QJB0.85/8-260/3-740/S | 259 | 0.4 | 0.8 | 0.15 | 2.2 | 231 |
| QJB1.5/6-260/3-980/S | 360 | 0.5 | 0.8 | 0.21 | 2.2 | 231 |
| QJB2.2/8-320/3-740/S | 518 | 0.8 | 0.8 | 0.31 | 2.3 | 240 |
| QJB4/6-320/3-960/S | 605 | 0.9 | 0.8 | 0.36 | 2.4 | 248 |
| QJB1.5/8-400/3-740/S | 691 | 1.0 | 0.8 | 0.41 | 2.4 | 248 |
| QJB2.5/8-400/3-740/S | 864 | 1.3 | 0.8 | 0.51 | 2.5 | 254 |
| QJB3/8-400/3-740/S | 1296 | 1.9 | 0.8 | 0.77 | 2.8 | 278 |
| QJB4/6-400/3-980/S | 1728 | 2.6 | 0.8 | 1.02 | 3.0 | 295 |
| QJB4/12-620/3-480/S | 2160 | 3.2 | 1 | 1.02 | 3.0 | 386 |
| QJB5/12-620/3-480/S | 2402 | 3.6 | 1 | 1.14 | 3.1 | 396 |
| QJB7.5/12-620/3-480/S | 3024 | 4.5 | 1.4 | 1.02 | 3.0 | 531 |
| QJB10/12-620/3-480/S | 3456 | 5.1 | 1.4 | 1.17 | 3.2 | 556 |
| MORE SPECIFICATIONS PLEASE CONTACT US. | ||||||
