Integrated Pump Station

Flow:30-9000GPM

Head:3

If you want to get more product information please contact us!

Send E-mail Get Price

Product Introduction
Applicatioms
Actual Pictures

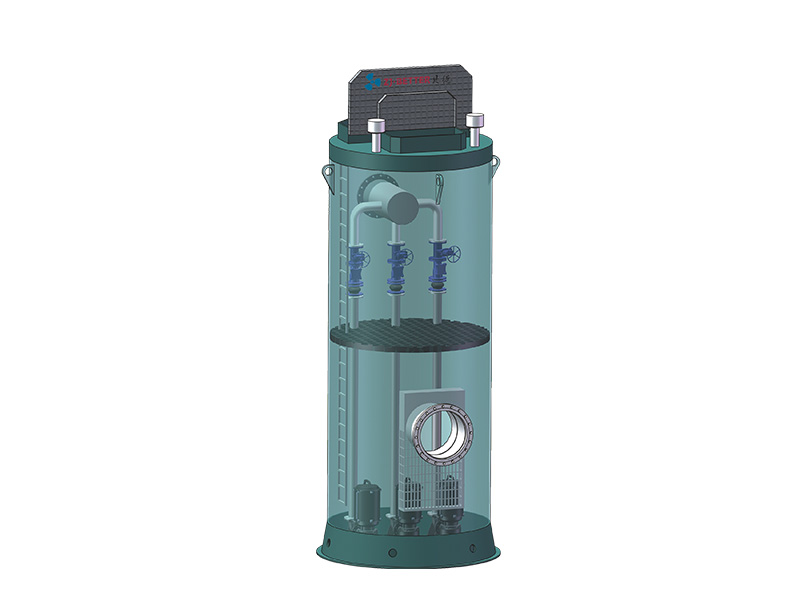

What Is an Integrated Pump Station? An Integrated Pump Station-also known as a Prefabricated Pump Station or Packaged Fire Pump Stationis afully assembled and tested system that combines all essential components of a fire pump system within one compact unit.Instead of installing pumps,controllers,piping,valves,and electrical systems separately on-site,anintegrated pump station is pre-engineered and factory-built as a complete module.It is then delivered to the project site ready for connection to the water supply and fire protection network.This concept greatly reduces on-site construction time,eliminates installation errors,and ensures consistent quality and performance

1. Product Application Modes

1. Automatic Liquid Level Control Operation: Built-in liquid level sensors monitor water level fluctuations in real-time. When the water level reaches a preset height, the pump automatically activates to discharge the water; it automatically stops once the level drops, enabling fully unattended operation.

2. Centralized Sewage/Stormwater Lifting and Discharge: Collects sewage and stormwater from low-lying areas or underground spaces, then pumps it up to the municipal sewer network or a designated discharge point, effectively resolving issues where gravity-based drainage is insufficient.

3. Multi-Pump Collaborative Operation Mode: Supports the alternating or simultaneous operation of multiple pumps. The system automatically switches between pumps based on flow demand, thereby enhancing operational efficiency and extending the service life of the equipment.

4. Intelligent Remote Monitoring: Can be integrated with an intelligent control system to enable remote monitoring, fault alarms, and operational data logging, facilitating streamlined maintenance management and rapid response capabilities.

5. Integrated Rapid Installation: The unit is fully prefabricated at the factory; on-site installation requires only hoisting the unit into position and connecting the inlet/outlet pipes and power supply, significantly shortening the construction timeline and reducing installation complexity.

2. Product Application Locations

1. Municipal Drainage Systems: Widely utilized in urban roadways, underground pipe networks, and drainage pump stations for the collection, lifting, and conveyance of stormwater and sewage.

2. Residential Communities & Commercial Complexes: Suitable for underground parking garages, basements, and areas situated below the elevation of the municipal sewer network, addressing the discharge requirements for domestic sewage.

3. Industrial Parks & Factories: Used for the centralized collection and lifting of industrial wastewater and production effluent, ensuring the stable and reliable operation of the facility's drainage system.

4. Transportation Infrastructure: Such as highways, railway tunnels, and low-lying bridge areas, utilized for stormwater drainage and the emergency management of accumulated water.

5. Scenic Spots & Public Facilities: Applicable to parks, tourist attractions, service areas, and similar venues for the treatment of domestic sewage and stormwater, thereby enhancing environmental management standards.

6. Rural Areas & New Urbanization Projects: Employed in decentralized sewage treatment systems to improve the capacity for collecting and discharging domestic sewage in rural regions.
