Fire Pump Systems
Electric Jockey Fire Pump Set

Package configuration
- Flow
- 50-5000GPM
- Head
- 3-20Bar
- Caliber
- 25-800mm
- Power
- Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
- Speed
- 740-2900r/min
- Material
- HT200, SS304, Bronze
Values are from archived product information. Confirm the current model datasheet before selection.

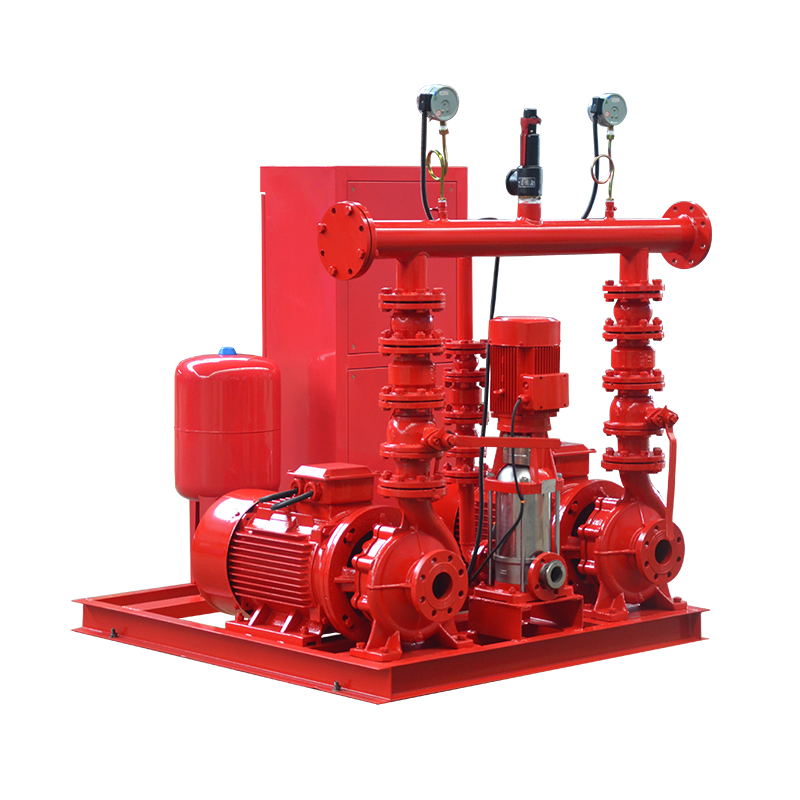

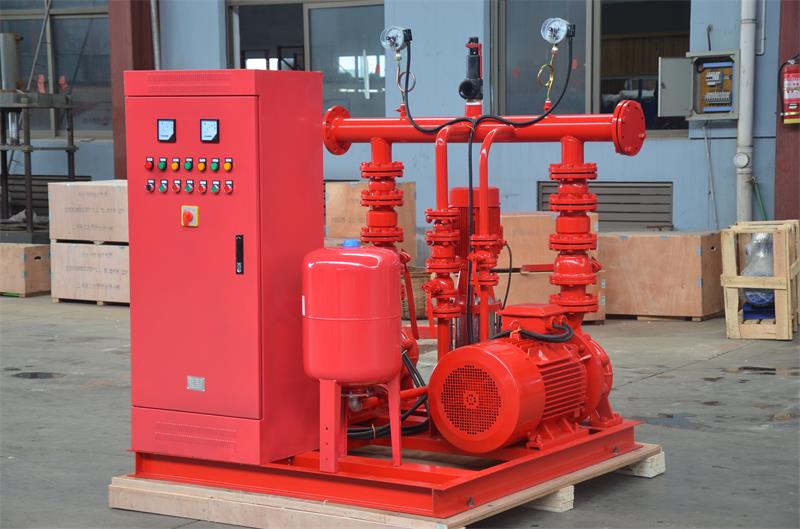

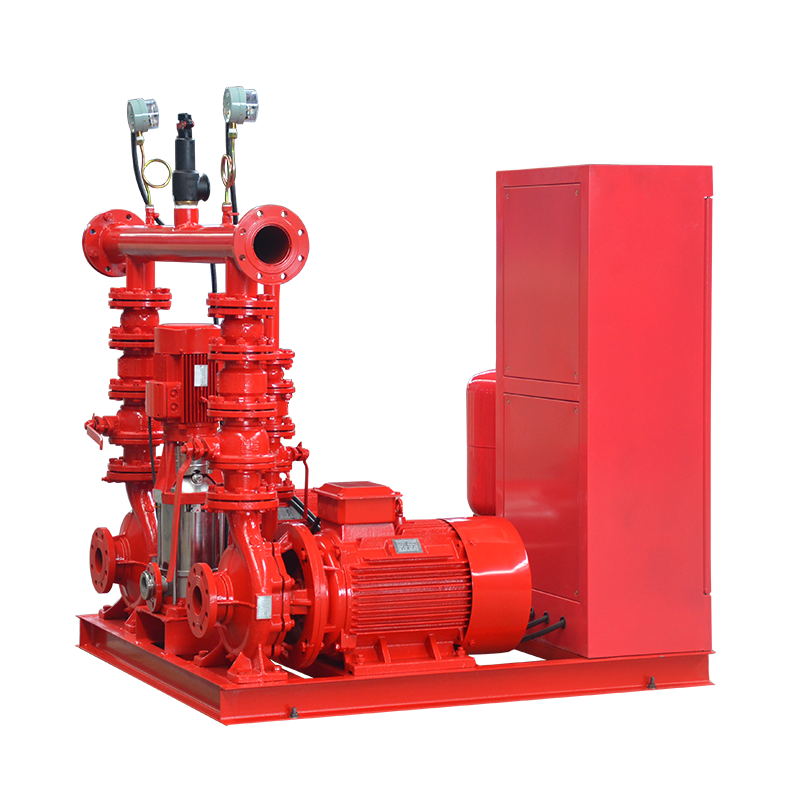

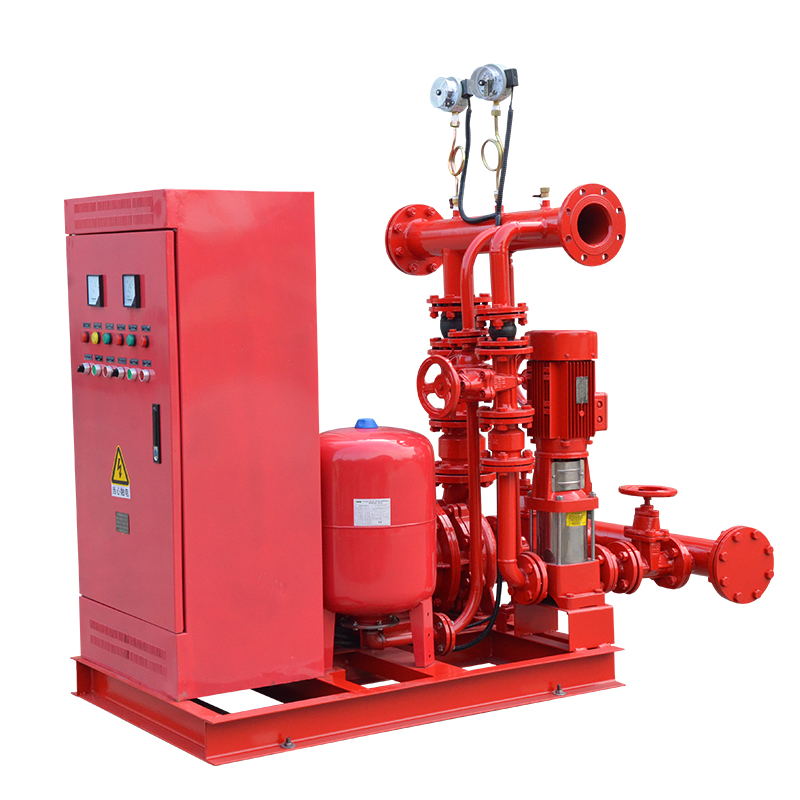

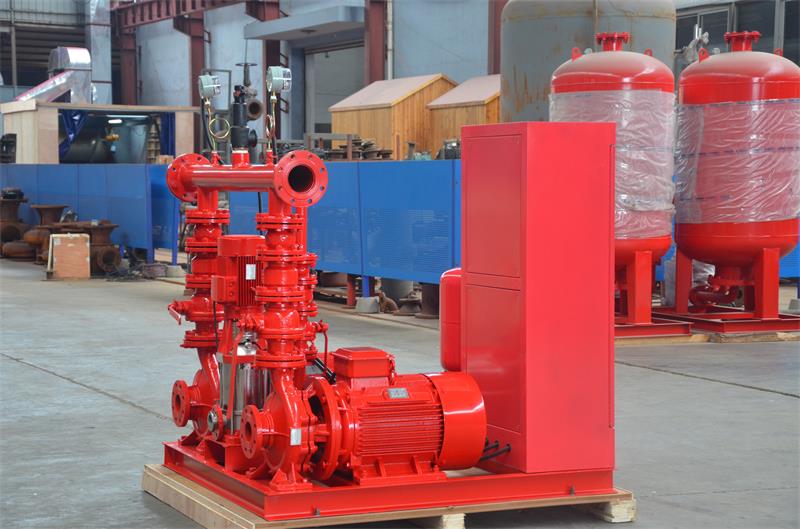

EEJ fire pump set (Two Electric pumps+Jockey pump)
1. TwoElectric pumps,one duty one standby can use single stage pump, horizontal split case pump, end suction pump, multistage pump,
material can be cast iron, stainless steel, and bronze impeller
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
3. Control panel: Auto Control of electric pump,one duty one standbyand Jockey Pump withoverload, over current protection
4. Accessories: check valve, gate valve,pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor,
Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant
Product Structure

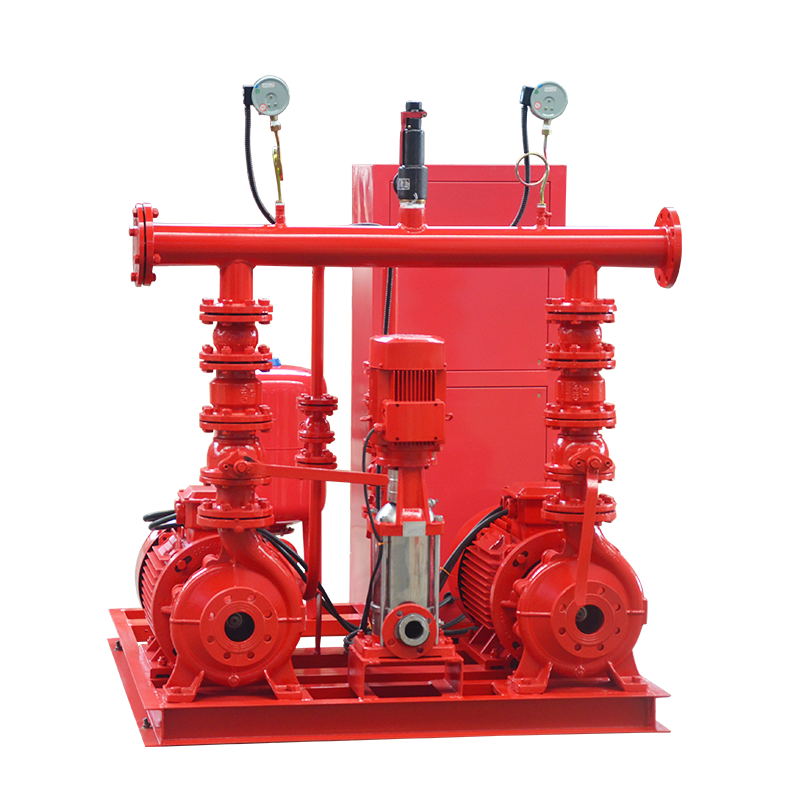

EEJ Fire pump system is made of 2electric pump+jockey pump
Operation: 1 Duty (electric) + 1 standby (electric) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM withpressure4, 5, 6,8,10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

Specifications
Fire pump system is made of E+E+J
Operation: 1 Duty (electric) + 1 standby (electric) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM withpressure4, 5, 6,8,10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.


Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

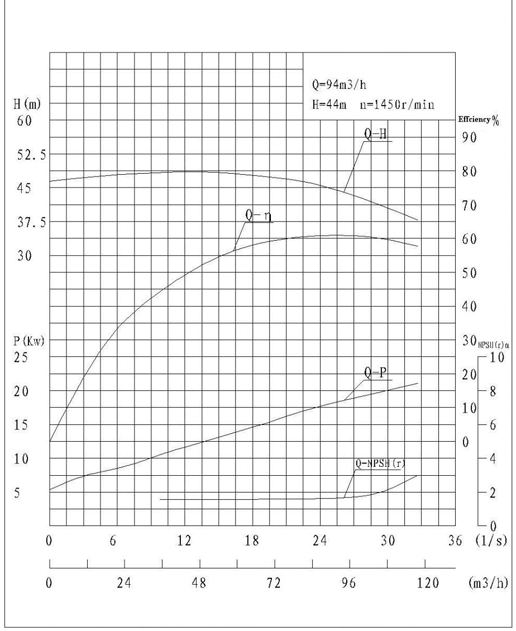

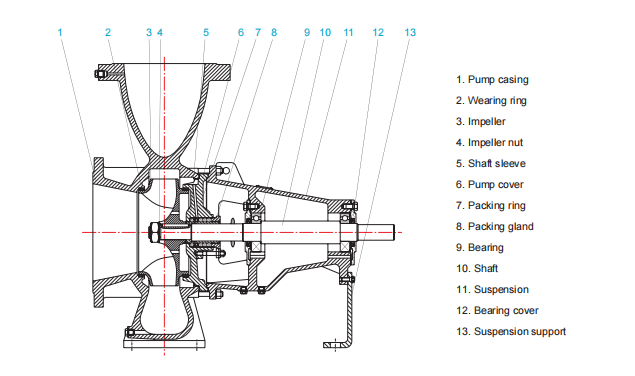

A. Electric Fire pump

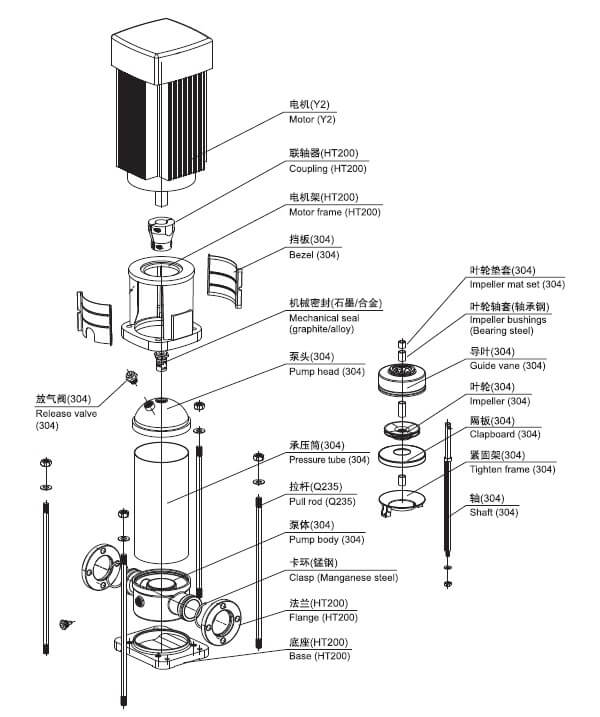

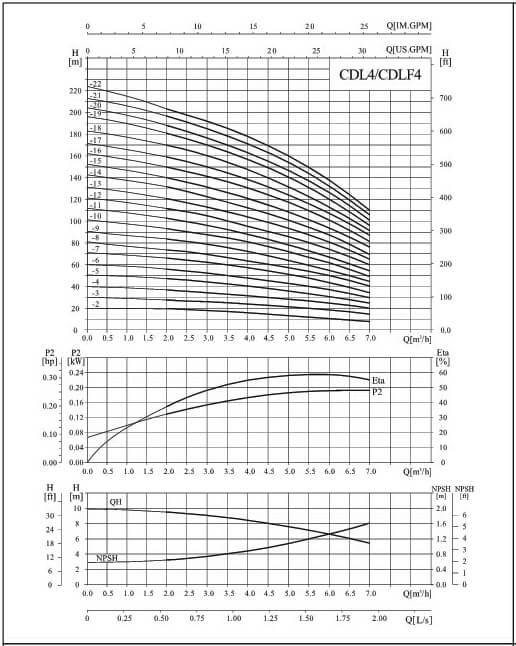

B. Jockey Fire Pump
