Fire Pump Systems
UL-Listed Fire Pump Set

Package configuration
- Flow
- 200-2500GPM
- Head
- 7-15 Bar
- Caliber
- 25-800mm
- Power
- Diesel pump / Electric pump: 1.5-350 kw, Jockey pump: 0.55-110kw
- Speed
- 2950 or 3550r/min
- Material
- HT200, SS304, Bronze
Values are from archived product information. Confirm the current model datasheet before selection.

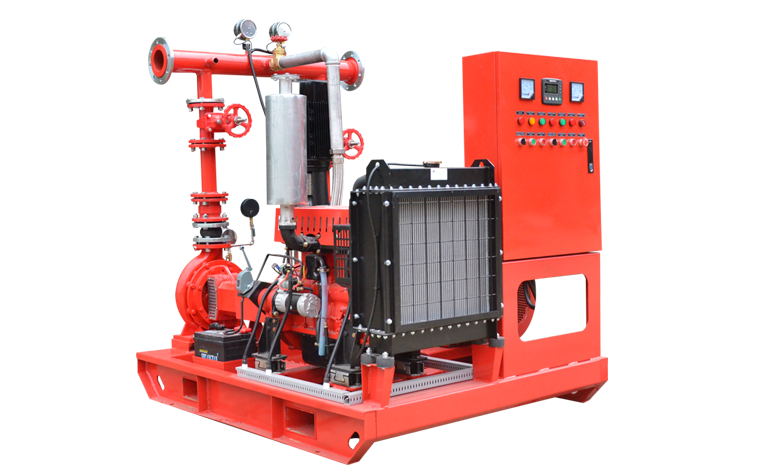

UL-Listed Fire Pump Set
UL fire pump, certification details pending,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed: 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI
Our advantages are pump efficiency,
1.500GPM@7bar, only 37KW motor drive is required.
2.500GPM@8bar , only 45KW motor drive is required.

Specifications

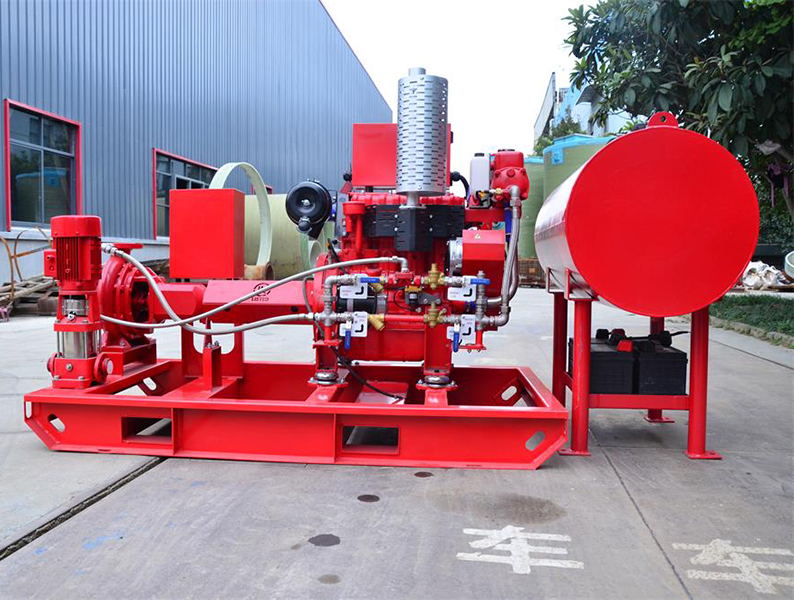

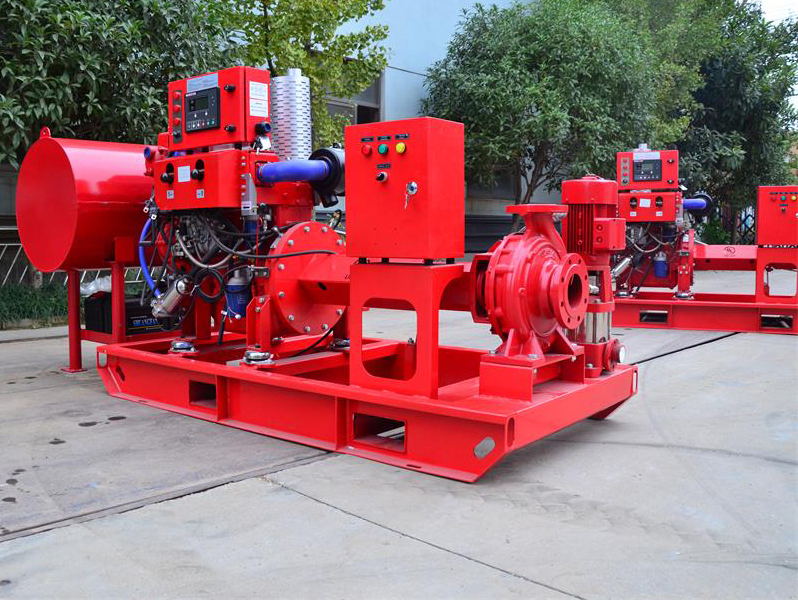

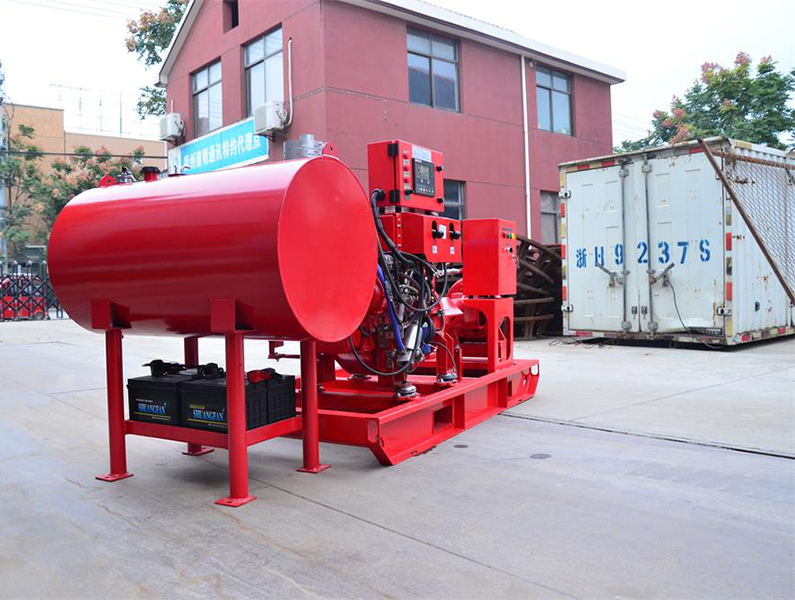

UL-listed Fire pump system is made of Electric pump +Diesel pump +Jockey pump
Operation: 1 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.
Bare pump types:
CENTRIFUGAL FIRE PUMPS,
END SUCTION BARE PUMP ,
SPLIT CASE PUMP,
VERTICAL INLINE FIRE PUMP
UL-listed Fire pump system is made of E+D+J
Operation: 1 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

1. Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
2. Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
2. Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.
2. Specifications
UL-listed Fire pump system is made of E+D+J
Operation: 1 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.
UL-listed Fire pump system is made of E+D+J
Operation: 1 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.
