Fire Pump Systems

Diesel Fire Pump Set with Jockey Pump

Package configuration

Flow
30-9000GPM
Head
3-20Bar
Caliber
25-800mm
Power
Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
Speed
740-2900r/min
Material
HT200, SS304, Bronze

Values are from archived product information. Confirm the current model datasheet before selection.

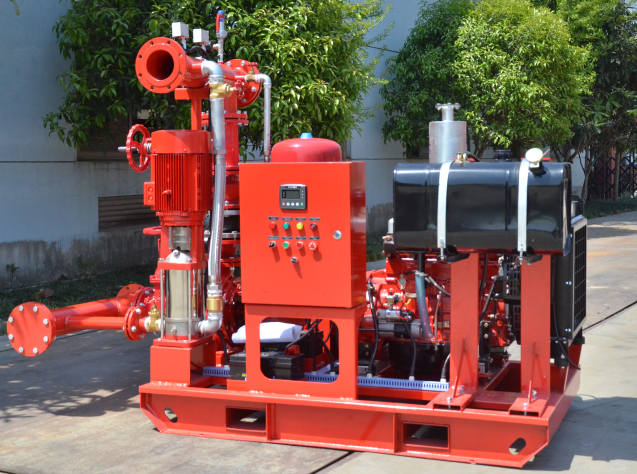

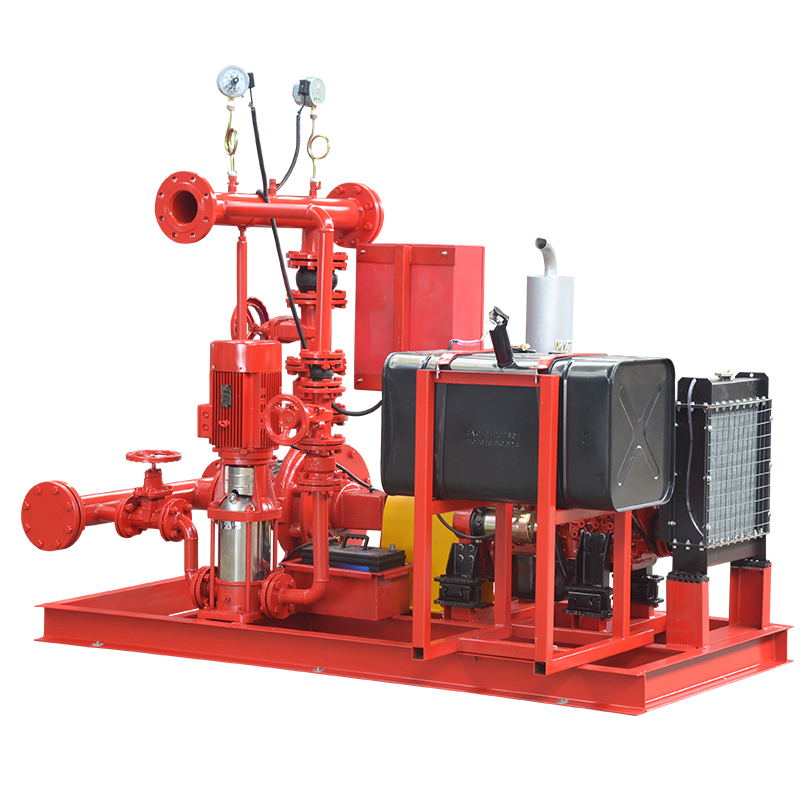

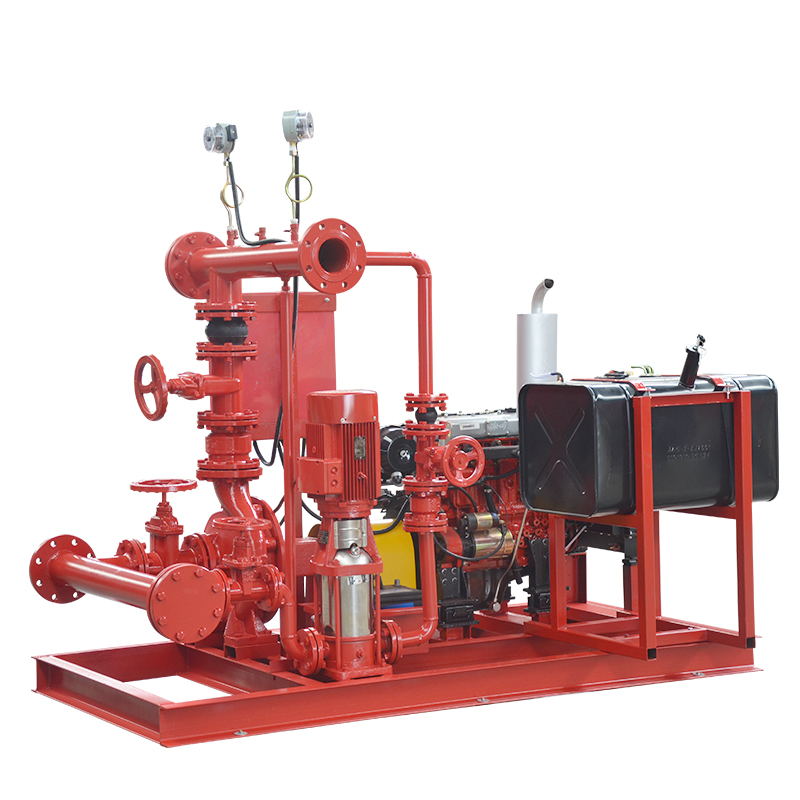

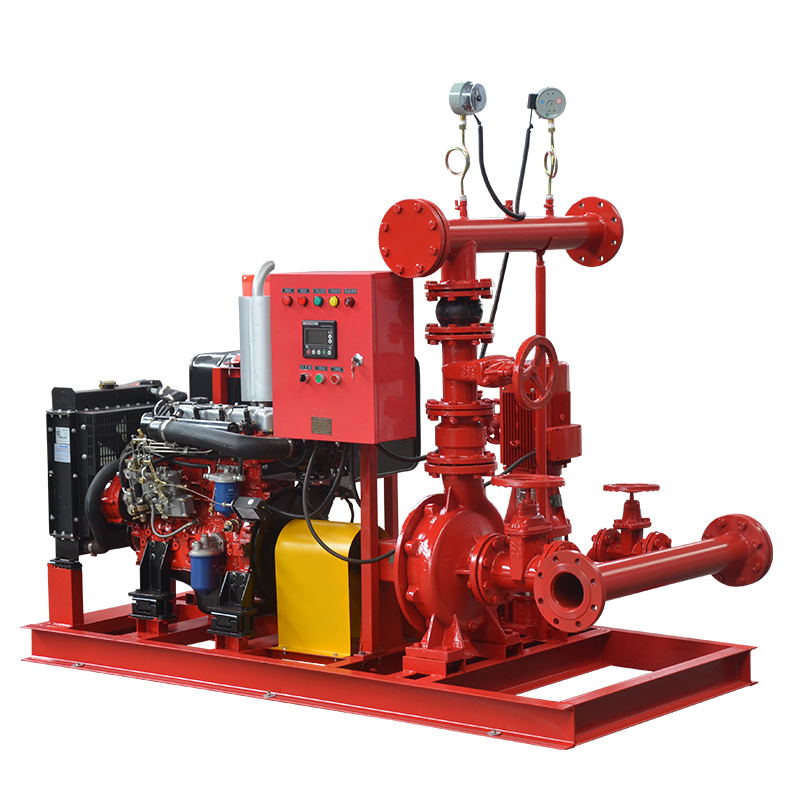

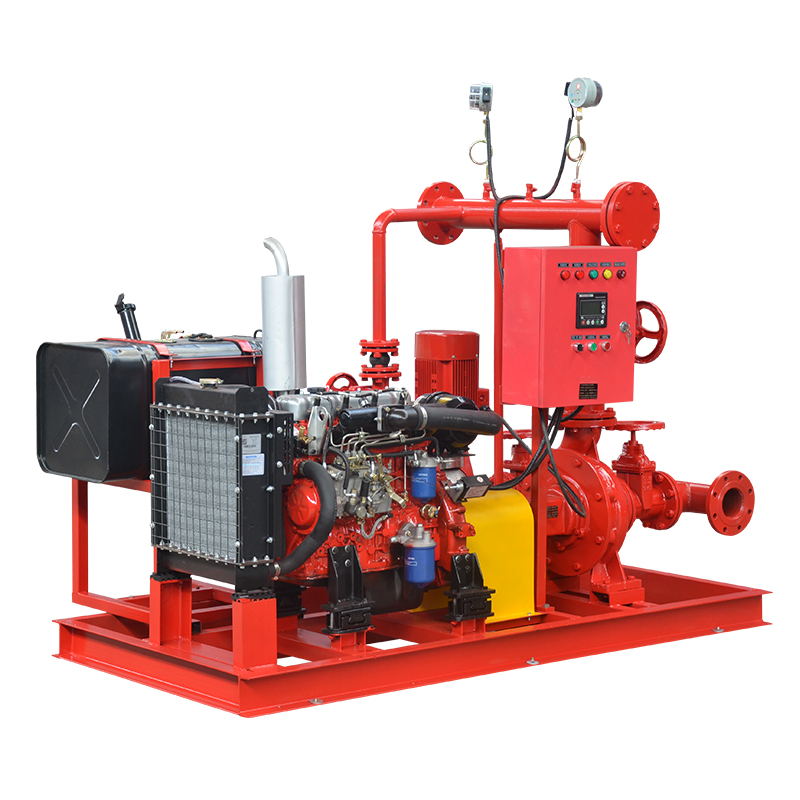

DJ fire pump set (Diesel pump+Jockey pump)

1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank,fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304
3. Control panel: Auto Control of diesel engine pump and Jockey Pump with overload, over current protection
4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

Earthquake-resistant electrical contact pressure gauges are equipped with buffer valves at the pressure gauges and interfaces to reduce pressure fluctuations caused by false alarm signals of the pump
Flexible Joints  the material is rubber, shock absorption, noise reduction, the vibration is relatively large when the pump is started, if it is a rigid connection, it is easy to pull off, and the rubber joint can absorb the vibration generated by the pump or valve, which is convenient for pipeline connection
