Fire Pump Systems

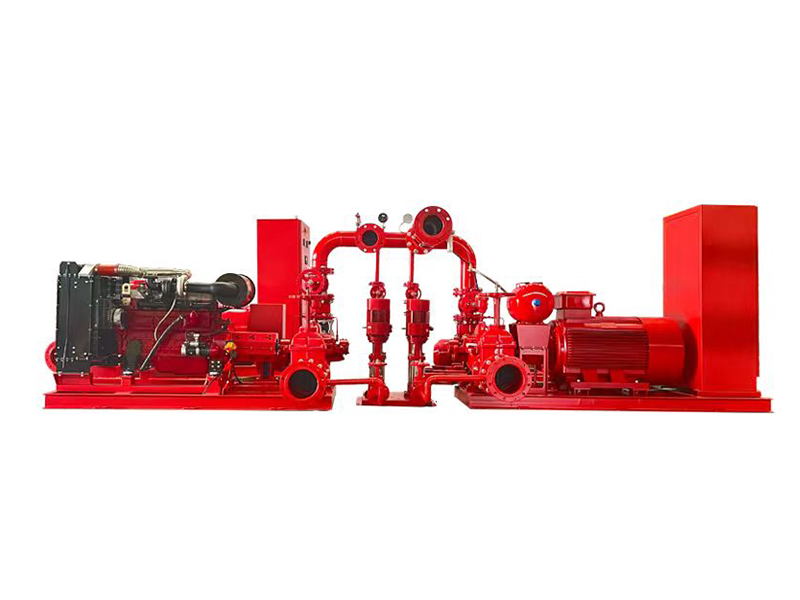

Split Case Fire Pump Set

Package configuration
- Flow
- 30-9000GPM
- Head
- 3-20Bar
- Caliber
- 25-800mm
- Power
- Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
- Speed
- 740-2900r/min
- Material
- HT200, SS304, Bronze
Values are from archived product information. Confirm the current model datasheet before selection.

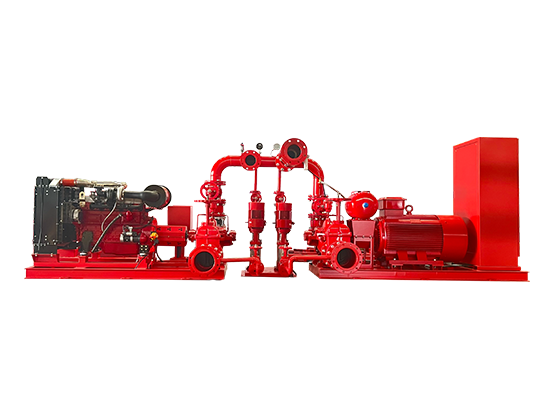

Split CaseFire Pump Packages
1.Electric pump, can useOTS pump, material can be cast iron, stainless steel, and bronze impeller.
Series OTS pumps are single stage, doublesuction with horizontally spit casings. They are suitable pumping unsettled water,clean water.non-drinkable or hydrocarbon at a temperature notexceeded 105℃.
Series OTS(L) pumps areavailablefor capacities Of68-18000m3/hr and heads of 70-200m.
They are adoptable in water works,irrigation anddrainagepumpingstations,firefightingsystems,marine applications as well asgeneral applications in refineries,etc.
2.Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan, control box
Diesel engine pump also can use end suction, split case, multistage pump can according to the flowrate, head .
Different Diesel Model use different tank capacity.
3.Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing :cast iron ,shaft and impeller SS304
4.Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump withoverload, over current protection.
The control system has current, voltage, power display, and the operating status display of fire pump, diesel pump and steady pressure pump, diesel engine voltage, oil pressure, speed, running time display, manual pump control and automatic remote control
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant



Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
2. Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

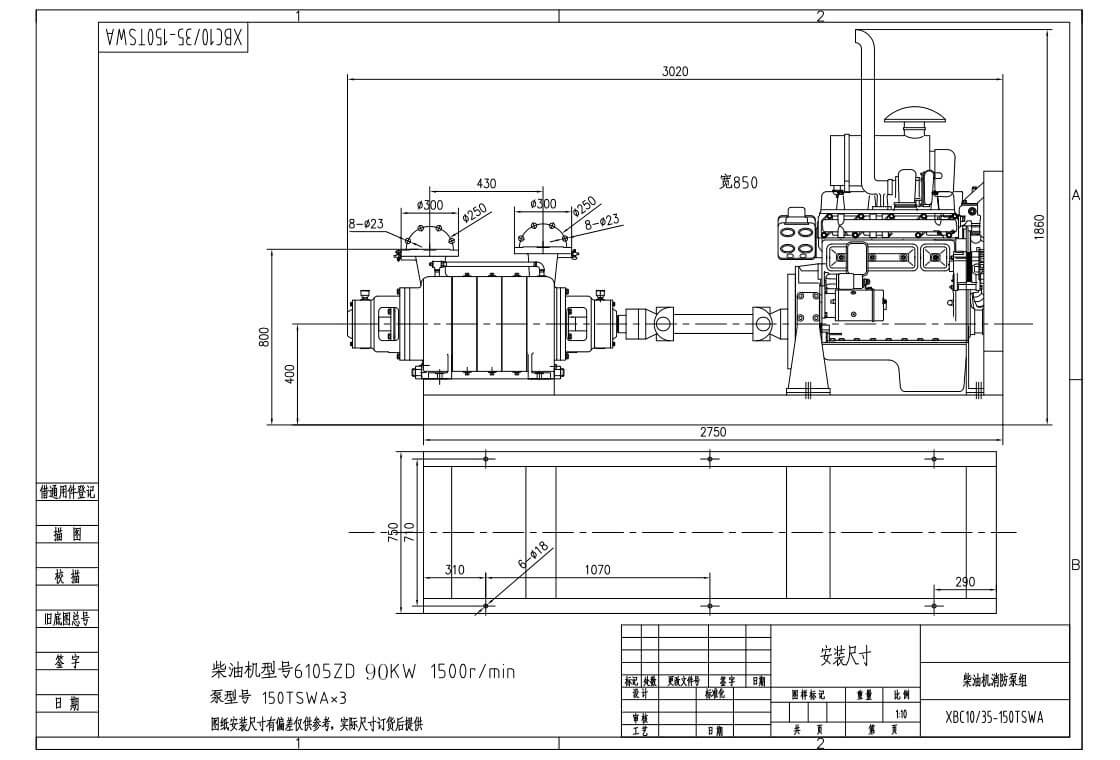

A. Diesel fire pump

B. Jockey Fire Pump

C. Electric Fire pump
