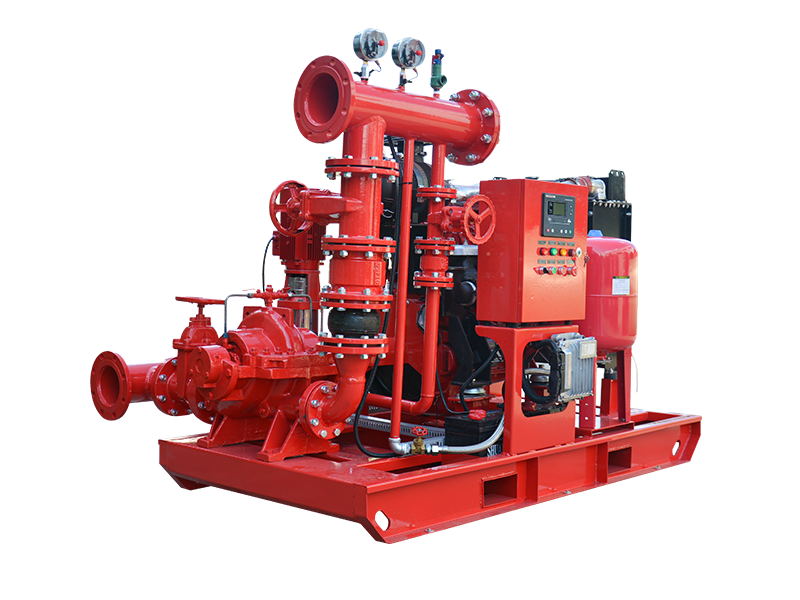

Cummins Engine Fire Pump Set
Flow:30-9000gpm
Head:1-70m
Power:3-355KW
Frequency:50 Hz or 60 Hz
If you want to get more product information please contact us!
This diesel fire pump system consist of Cummins Engine diesel fire pump, jockey pump and control panel.
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304
3. Control panel: Auto Control of diesel engine pump and Jockey Pump with overload, over current protection
4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304
3. Control panel: Auto Control of diesel engine pump and Jockey Pump with overload, over current protection
4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant
Widely used for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
| Model | Pump | Diesel Engine | Jockey Pump | |||||||
| Flow | Head | Pressure | Model | Power | Diesel Engine | Model | Head | Power | ||
| M3/h | GPM | bar | Pis | kW | kW | L | ||||
| DJ25/3 | 5.6 | 25 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ25/4 | 5.6 | 25 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ25/5 | 5.6 | 25 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ25/6 | 5.6 | 25 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ25/7 | 5.6 | 25 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ25/8 | 5.6 | 25 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ25/9 | 5.6 | 25 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ25/10 | 5.6 | 25 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ25/11 | 5.6 | 25 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ25/12 | 5.6 | 25 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| DJ30/3 | 6.9 | 30 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ30/4 | 6.9 | 30 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ30/5 | 6.9 | 30 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ30/6 | 6.9 | 30 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ30/7 | 6.9 | 30 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ30/8 | 6.9 | 30 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ30/9 | 6.9 | 30 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ30/10 | 6.9 | 30 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ30/11 | 6.9 | 30 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ30/12 | 6.9 | 30 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| 至 | ||||||||||
| DJ100/10 | 22.7 | 100 | 10 | 145 | D25-30x4 | 20 | 295F | CDL2-14 | 10.5 | 1.5 |
| DJ100/11 | 22.7 | 100 | 11 | 160 | D25-30x4 | 20 | 295F | CDL2-15 | 11.2 | 1.5 |
| DJ100/12 | 22.7 | 100 | 12 | 174 | D25-30x4 | 20 | 295F | CDL2-17 | 12.7 | 2.2 |
