Fire Pump Systems
DJ Fire Pump Set with Jockey Pump

Package configuration
- Flow
- 25-100gpm
- Head
- 3-25Bar
- Power
- 3-20KW
Values are from archived product information. Confirm the current model datasheet before selection.

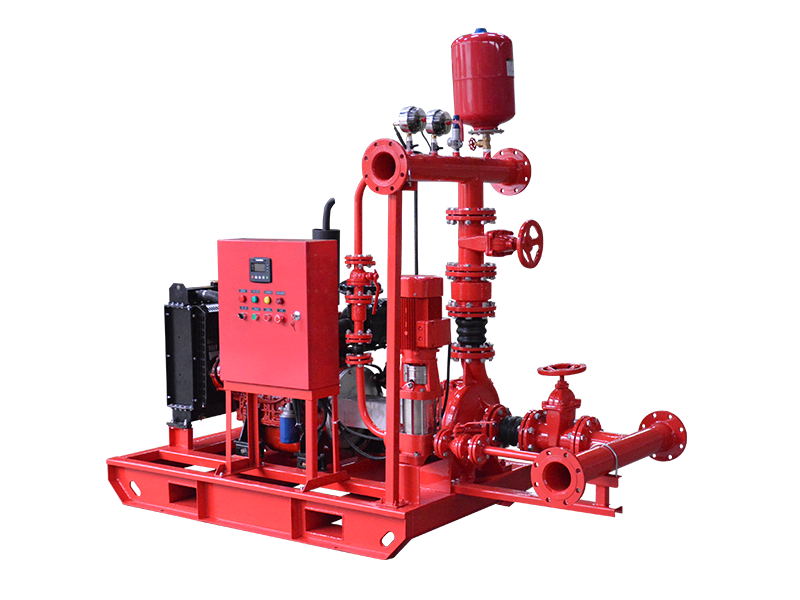

DJ fire pump set (Diesel pump+Jockey pump):
Operation: 1 Duty (diesel) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM withpressure4, 5, 6,8,10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank,fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304
3. Control panel: Auto Control of diesel engine pump and Jockey Pump with overload, over current protection
4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant
| Model | Pump | Diesel Engine | Jockey Pump | |||||||
| Flow | Head | Pressure | Model | Power | Diesel Engine | Model | Head | Power | ||
| M3/h | GPM | bar | Pis | kW | bar | kw | ||||
| DJ25/3 | 5.6 | 25 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ25/4 | 5.6 | 25 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ25/5 | 5.6 | 25 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ25/6 | 5.6 | 25 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ25/7 | 5.6 | 25 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ25/8 | 5.6 | 25 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ25/9 | 5.6 | 25 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ25/10 | 5.6 | 25 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ25/11 | 5.6 | 25 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ25/12 | 5.6 | 25 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| DJ30/3 | 6.9 | 30 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ30/4 | 6.9 | 30 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ30/5 | 6.9 | 30 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ30/6 | 6.9 | 30 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ30/7 | 6.9 | 30 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ30/8 | 6.9 | 30 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ30/9 | 6.9 | 30 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ30/10 | 6.9 | 30 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ30/11 | 6.9 | 30 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ30/12 | 6.9 | 30 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| DJ100/10 | 22.7 | 100 | 10 | 145 | D25-30x4 | 20 | 295F | CDL2-14 | 10.5 | 1.5 |
| DJ100/11 | 22.7 | 100 | 11 | 160 | D25-30x4 | 20 | 295F | CDL2-15 | 11.2 | 1.5 |
| DJ100/12 | 22.7 | 100 | 12 | 174 | D25-30x4 | 20 | 295F | CDL2-17 | 12.7 | 2.2 |
The above is part of technical parameters. More information pls contact us!
