Fire Pump Systems
ED Fire Pump Set (Electric+Diesel pump)

Package configuration
- Flow
- 30-1000GPM
- Head
- 3-20Bar
- Speed
- 740-2900r/min
- Power
- Diesel pump / Electric pump: 1.5-710 kw
Values are from archived product information. Confirm the current model datasheet before selection.
Specifications

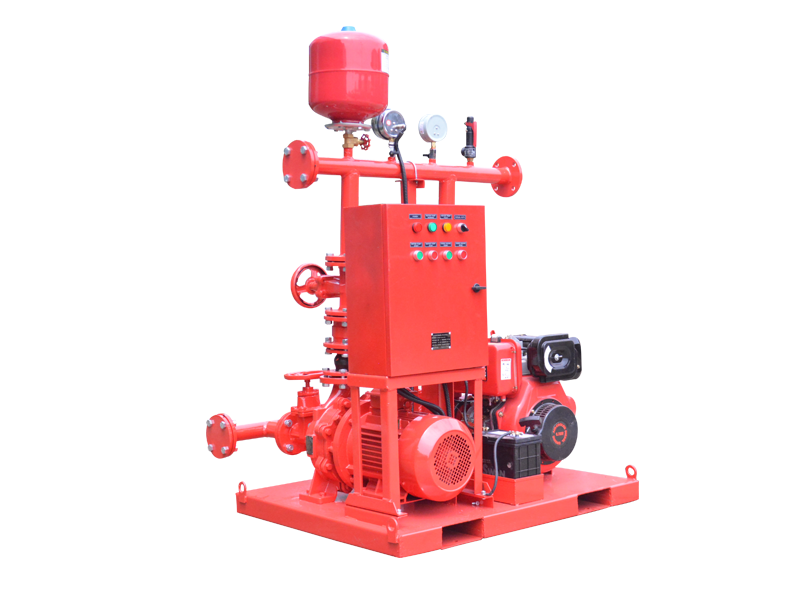

ED Fire pump system is made of Electric pump +Diesel pump
Operation: 1 Duty (electric) + 1 standby (diesel engine)
Capacity: 25, 30, 50, 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.


ED Fire pump system is made of Electric pump +Diesel pump
Operation: 1 Duty (electric) + 1 standby (diesel engine)
Capacity: 25, 30, 50, 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.



Mainly usedfor warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
