Fire Pump Systems

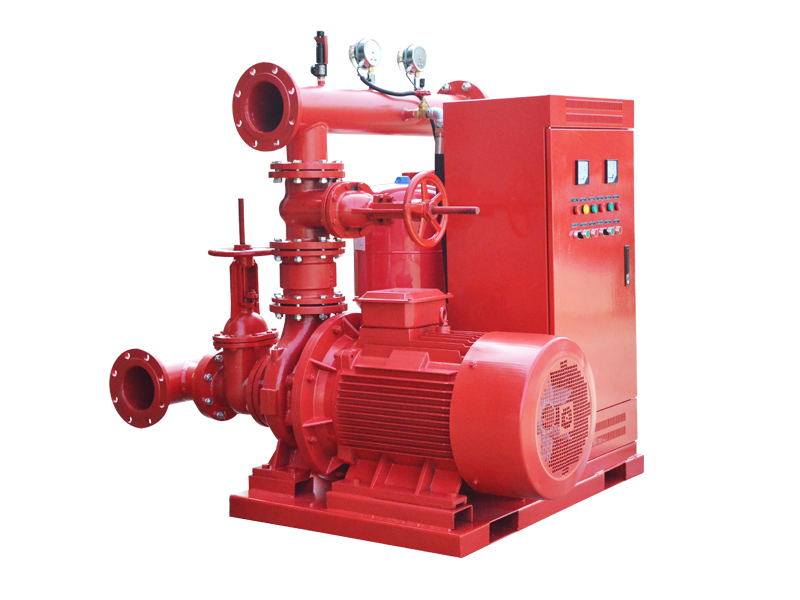

EJ Fire Pump Set

Package configuration

Flow
14-2700 gpm
Head
12-80 meter
Speed
740-2900r/min
Material
HT200, SS304, Bronze

Values are from archived product information. Confirm the current model datasheet before selection.

EJ fire pump set (Electric pump+Jockey pump)

EJ Fire pump system is made of electric pump+jockey pump+control panel and accessories

Capacity: 25, 30, 100, 150, 200, 300, 400, 500, 750, 1000...GPM withpressure4, 5, 6,8,10... Bar.

Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.




Bare pump providedinclude: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines.

1.Electric pumps, can usehorizontal split case pump, end suction pump, multistage pump,material can be cast iron, stainless steel, and bronze impeller

2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump

3. Control panel: Auto Control of electric pump,one duty one standbyand Jockey Pump withoverload, over current protection

4. Accessories: check valve, gate valve,pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor,
Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant



ModelFire PumpJockey pump
FlowHeadPressureModelHeadPower
M3/hGPMBarPisBarKW
EJ25/35.625344CDL2-53.70.55
EJ25/45.625458CDL2-64.50.75
EJ25/55.625573CDL2-75.20.75
EJ25/65.625687CDL2-96.71.1
EJ25/75.6257102CDL2-107.51.1
EJ25/85.6258116CDL2-1291.5
EJ25/95.6259131CDL2-139.71.5
EJ25/105.62510145CDL2-1410.51.5
EJ25/115.62511160CDL2-1511.21.5
EJ25/125.62512174CDL2-1712.72.2
EJ30/36.930344CDL2-53.70.55
EJ30/46.930458CDL2-64.50.75
EJ30/56.930573CDL2-75.20.75
EJ30/66.930687CDL2-96.71.1
EJ30/76.9307102CDL2-107.51.1
EJ30/86.9308116CDL2-1291.5
EJ30/96.9309131CDL2-139.71.5
EJ30/106.93010145CDL2-1410.51.5
EJ30/116.93011160CDL2-1511.21.5
EJ30/126.93012174CDL2-1712.72.2
EJ100/1022.710010145CDL2-1410.51.5
EJ100/1122.710011160CDL2-1511.21.5
EJ100/1222.710012174CDL2-1712.72.2
The above is part of technical parameters. More information pls contact us!
