Fire Pump Systems

Small Capacity Electric Fire Pump Set

Package configuration

Flow
25-100gpm
Head
3-25Bar
Power
3-20KW
Frequency
50 Hz or 60 Hz

Values are from archived product information. Confirm the current model datasheet before selection.

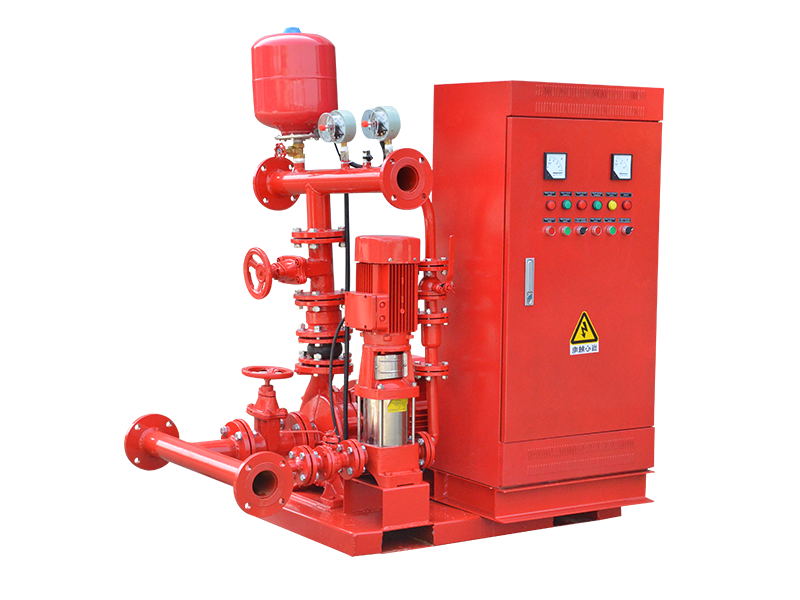

EJ fire pump set (Electric pump+Jockey pump)

EJ Fire pump system includes one electri pump with a jockey pump mounted on a skid.

Operation: 1 Duty (electric)+ 1 Jockey

Capacity: 30, 50, 100, 150, 200, 300, 400, 500, 750, 1000...GPM withpressure4, 5, 6,8,10... Bar.

Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

Types of pumps
used for fire service include: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines.

1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
3. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant.


ModelFire PumpJockey pump
FlowHeadPressureModelHeadPower
M3/hGPMbarPisbarkw
EJ25/35.625344CDL2-53.70.55
EJ25/45.625458CDL2-64.50.75
EJ25/55.625573CDL2-75.20.75
EJ25/65.625687CDL2-96.71.1
EJ25/75.6257102CDL2-107.51.1
EJ25/85.6258116CDL2-1291.5
EJ25/95.6259131CDL2-139.71.5
EJ25/105.62510145CDL2-1410.51.5
EJ25/115.62511160CDL2-1511.21.5
EJ25/125.62512174CDL2-1712.72.2
EJ30/36.930344CDL2-53.70.55
EJ30/46.930458CDL2-64.50.75
EJ30/56.930573CDL2-75.20.75
EJ30/66.930687CDL2-96.71.1
EJ30/76.9307102CDL2-107.51.1
EJ30/86.9308116CDL2-1291.5
EJ30/96.9309131CDL2-139.71.5
EJ30/106.93010145CDL2-1410.51.5
EJ30/116.93011160CDL2-1511.21.5
EJ30/126.93012174CDL2-1712.72.2
EJ100/1022.710010145CDL2-1410.51.5
EJ100/1122.710011160CDL2-1511.21.5
EJ100/1222.710012174CDL2-1712.72.2
