Fire Pump Systems
Fire Fighting Pump System

Package configuration
- Flow
- 30-9000GPM
- Head
- 3-20Bar
- Caliber
- 25-800mm
- Power
- Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
- Speed
- 740-2900r/min
Values are from archived product information. Confirm the current model datasheet before selection.

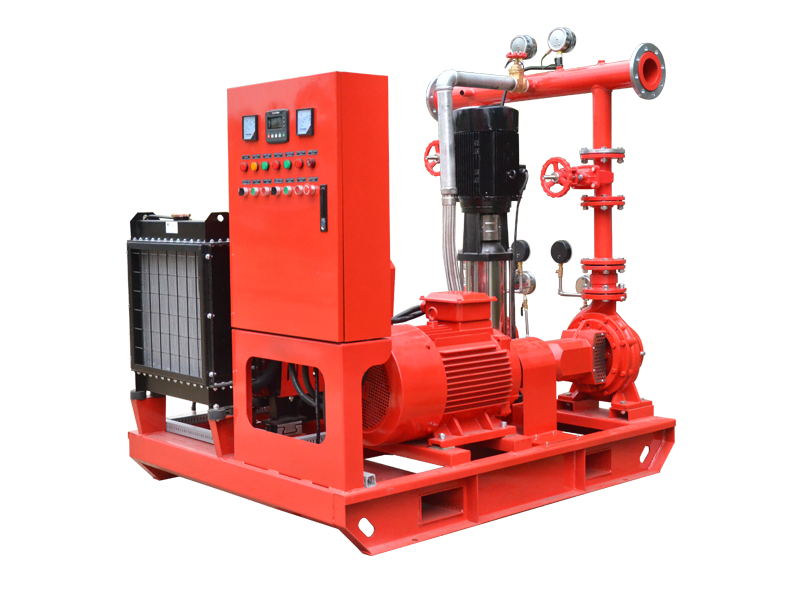

EDJ Fire Pump Set (Electric pump+Diesel pump+Jockey pump)
Fire pump setcomprises a combination of electric motor driven pump, diesel engine driven and electric motor driven jockey pumps that supply for fire suppression systems.Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).

Bare pump providedinclude: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines.
1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant.
100GPM @4BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD4/5-50L(50-200) 100 4 5.5 cast iron Diesel engine XBC4/5-IS 100 4 5.5 cast iron Jockey CDL2-70 10 5 0.75 SS304 100GPM @6BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD6/5-65L(65-250B) 100 6 7.5 cast iron Diesel engine XBC6/5-IS 100 6 7.5 cast iron Jockey CDL2-100 10 7 1.1 SS304 200GPM @6BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD6/10-65L(65-250) 200 6 15 cast iron Diesel engine XBC4/5-IS 200 6 22 cast iron Jockey CDL4-90 20 7 2.2 SS304 500GPM @5BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD5/30-100L(100-200) 500 5 22 cast iron Diesel engine XBC5/30-IS 500 5 30 cast iron Jockey CDL12-60 50 6 4 SS304 500GPM @8BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD8/30-100L(100-250) 500 8 37 cast iron Diesel engine XBC8/30-D 500 8 45 cast iron Jockey CDL12-90 50 9 5.5 SS304 500GPM @10BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD10/30-100L(100-315A) 500 10 55 cast iron Diesel engine XBC10/30-D 500 10 55 cast iron Jockey CDL12-110 50 11 7.5 SS304 750GPM @9BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD9/50-125L(125-250) 750 9 55 cast iron Diesel engine XBC9/50-D 750 9 90 cast iron Jockey CDL16-90 70 10 11 SS304 750GPM @10BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD10/50-150L(150-315A) 750 10 90 cast iron Diesel engine XBC10/50-D 750 10 90 cast iron Jockey CDL16-100 70 11 11 SS304 more specification please contact us
100GPM @4BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD4/5-50L(50-200) 100 4 5.5 cast iron Diesel engine XBC4/5-IS 100 4 5.5 cast iron Jockey CDL2-70 10 5 0.75 SS304 100GPM @6BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD6/5-65L(65-250B) 100 6 7.5 cast iron Diesel engine XBC6/5-IS 100 6 7.5 cast iron Jockey CDL2-100 10 7 1.1 SS304 200GPM @6BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD6/10-65L(65-250) 200 6 15 cast iron Diesel engine XBC4/5-IS 200 6 22 cast iron Jockey CDL4-90 20 7 2.2 SS304 500GPM @5BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD5/30-100L(100-200) 500 5 22 cast iron Diesel engine XBC5/30-IS 500 5 30 cast iron Jockey CDL12-60 50 6 4 SS304 500GPM @8BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD8/30-100L(100-250) 500 8 37 cast iron Diesel engine XBC8/30-D 500 8 45 cast iron Jockey CDL12-90 50 9 5.5 SS304 500GPM @10BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD10/30-100L(100-315A) 500 10 55 cast iron Diesel engine XBC10/30-D 500 10 55 cast iron Jockey CDL12-110 50 11 7.5 SS304 750GPM @9BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD9/50-125L(125-250) 750 9 55 cast iron Diesel engine XBC9/50-D 750 9 90 cast iron Jockey CDL16-90 70 10 11 SS304 750GPM @10BAR Pump Model Capacity(GPM) Head(BAR) Power(KW) Material Electric XBD10/50-150L(150-315A) 750 10 90 cast iron Diesel engine XBC10/50-D 750 10 90 cast iron Jockey CDL16-100 70 11 11 SS304 more specification please contact us
This fire pump set is mainly usedfor warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
