Fire Pump Systems
EJ Small Flow Fire Pump Set

Package configuration
- Power
- 5.5 kw
- Flow
- 50 GPM
- Head
- 5 Bar
- Caliber
- 40 mm
- Speed
- 2900 rpm
- Material
- Cast iron/SS/ Bronze impeller
Values are from archived product information. Confirm the current model datasheet before selection.

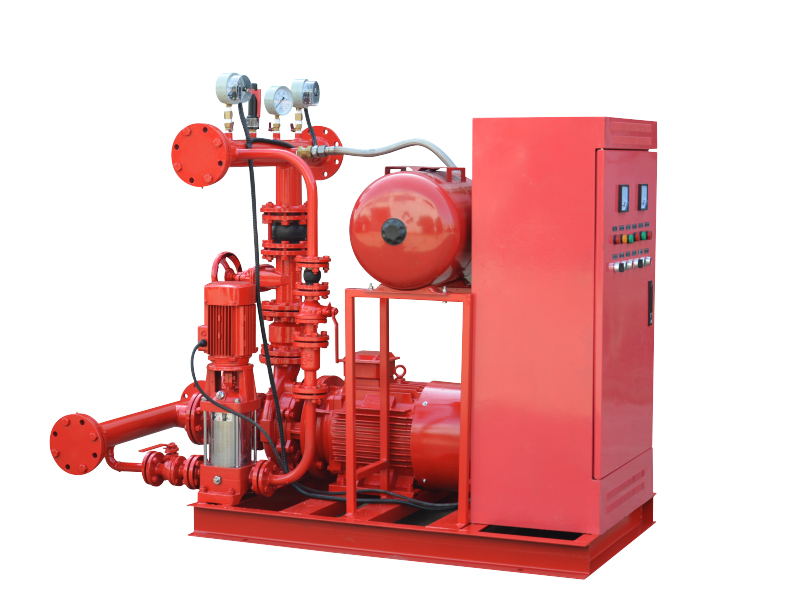

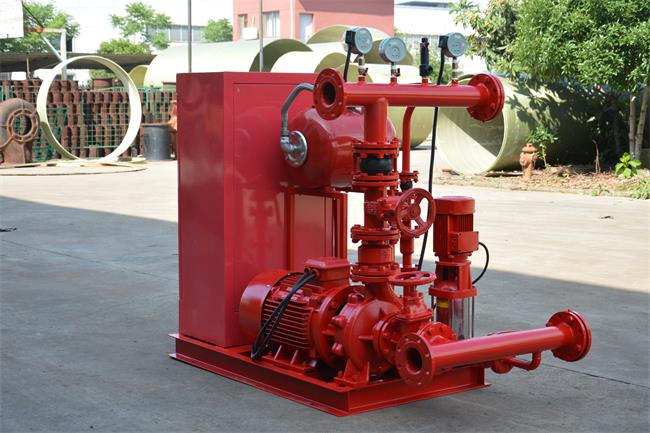

EJ Small fire pump system(Electric pump + jockey pump)
As usual,Fire pump systeminclude Diesel engine pump + Electric motor pump+Jockey pump. Sometime, it just include Electric pump+Jockey pump.Its power: 1.0 to 20kw, flow: 15-300gpm, head: 3-10bar, 50/60hz. The material: Cast iron or SS, bronze impeller.
This pump machine unit is very sutitable for fire fighting or pressure-stablized purpose for house or small building. We make it as customized according to NFPA 20 and GB standard.
The diesel engine is Honda, Changcai, Changfa, Sifang. And we have motor factory, can make motors from 1 kw- 710 kw.

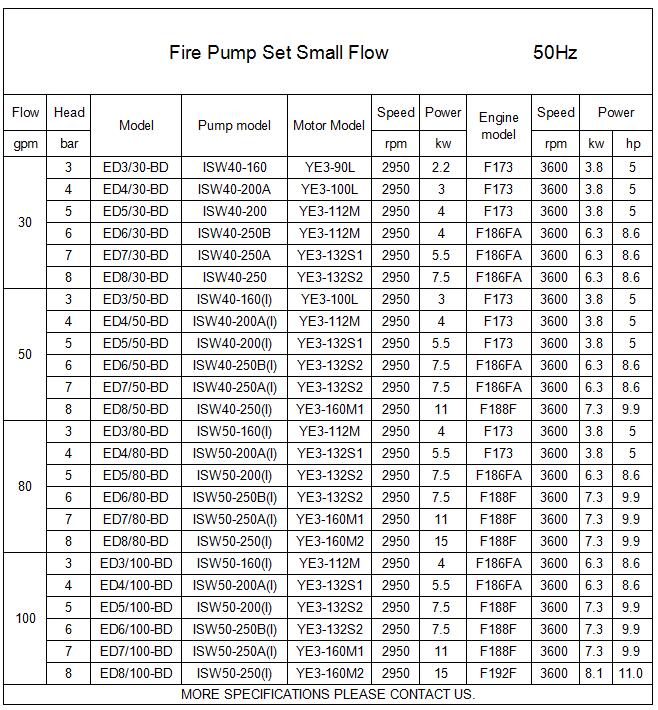

Specification


1. Application Scope
1-- Applicable for the XBC series Diesel Fire Pump control made in this Co., and also for thediesel engine fire fighting pumpand diesel generator controls of users.
2-- It is applicable for water supply for fire service and emergency water supply.
3-- Suitable for the fire-fighting water supply and emergency water supply in storehouse, yard, airport, petroleum and chemical industry, power plant liquefied gas, textile, ship, and oil ship etc. occasions.
2. Using Instruction
1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of the fire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.
1-- Applicable for the XBC series Diesel Fire Pump control made in this Co., and also for thediesel engine fire fighting pumpand diesel generator controls of users.
2-- It is applicable for water supply for fire service and emergency water supply.
3-- Suitable for the fire-fighting water supply and emergency water supply in storehouse, yard, airport, petroleum and chemical industry, power plant liquefied gas, textile, ship, and oil ship etc. occasions.
2. Using Instruction
1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of the fire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.
Specifications
