Diesel Engine Pump

XBC-IS Diesel Engine Fire Pump

Performance summary

Flow
5-120L/s
Head
0.2-1.6MPa
Caliber
50-250mm
Power
3-220kW
Speed
1500-2600r/min
Working Pressure
1.6MPa

Values are from archived product information. Confirm the current model datasheet before selection.

Product Introduction of XBC series diesel engine fire-fighting pump
XBC series diesel engine fire-fighting pump group is a new-style fire-fighting equipment developed in accordance with GB6245-98 and NEPA20 standard, and upon the fitted fire-fighting pumps (single-stage single-suction type, single-stage double-suction type and sectional multistage type), can be divided into XBC-IS, XBC-S and XBC-D three sub series. The equipment has a wide range of pressure and temperature and can be used for almost every occasion necessary for fire-fighting.
The diesel engine fitted with the equipment is an excellent product domestic or imported, features good starting performance, strong overload capacity, compact structure, easy maintenance and use and high degree of automation. The equipment is really a fire-fighting one advanced and reliable in performance.

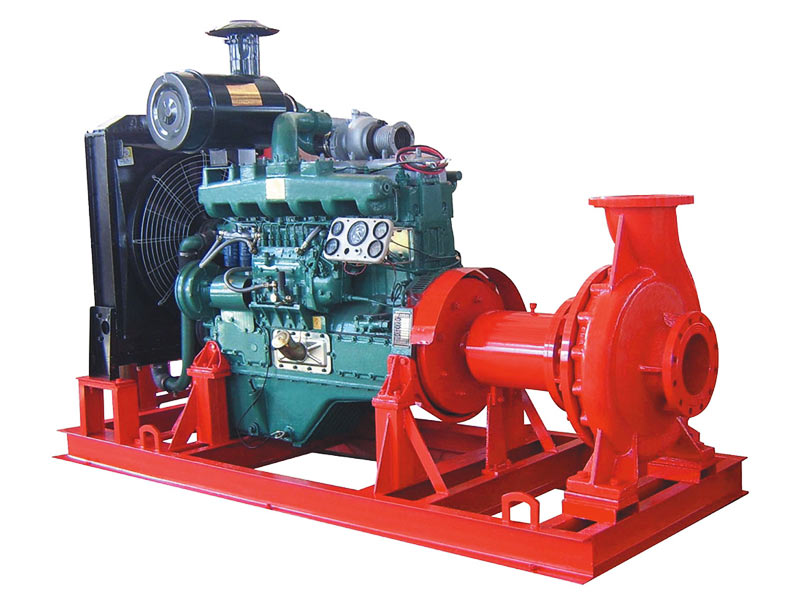

diesel engine fire fighting irrigation water pump set with centrifugal single stage end suction water pump head, diesel engine (as ususal we use China famouos brand or cummins,cat,isuze etc), cast iron base is widely used in firefighting such as dock, building, oil stock, industrial factory and agricultural farm irrigation.It should comply with the GB6245-2006 and NFPA20 standard and other rules in related country.
