Diesel Engine Pump

Fire Pump Packages

Performance summary

Flow
30-1250GPM
Head
3-20Bar.
Caliber
25-800mm
Power
diesel engine, electric, 1.5-315kw, jockey, 0.55-160kw
Speed
740-2900r/min
Material
HT200, SS304, Bronze

Values are from archived product information. Confirm the current model datasheet before selection.

Product Introduction offire pump packages

1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller

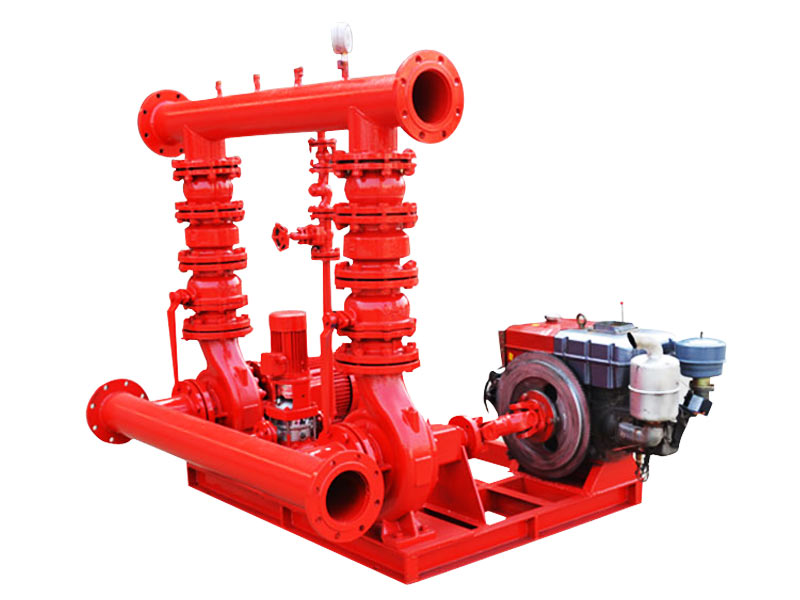

2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection。
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant.

Fire pump packages consists of one main pump coupled to electric motor, one stand by pump coupled to diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of system and standard accessories mounted on base frame.

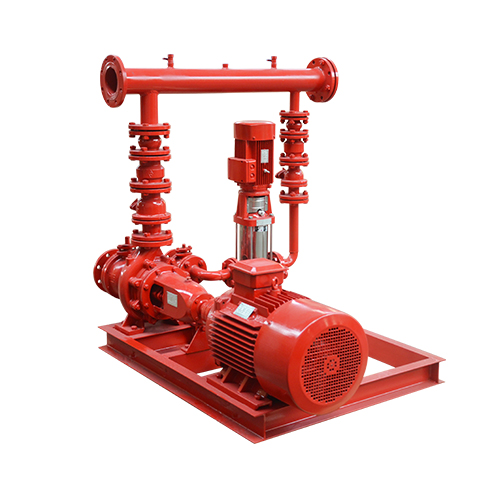

electric motor driven and jockey pump
