CDL Stainless Steel Multistage Centrifugal Pump

Performance summary
Model specifications are pending.
Values are from archived product information. Confirm the current model datasheet before selection.
Product Introduction of CDL Stainless Steel Multistage Centrifugal Pump
CDL type of stainless steel metal stamping forming vertical multistage centrifugal pump (hereinafter referred to as the pump), with the use of health clean, high efficiency, low noise, resistance to mildly corrosive and compact structure, beautiful appearance, small size, light weight, the use of easy maintenance, and reliable sealing performance.

CDL type of stainless steel metal stamping forming vertical multistage centrifugal pump (hereinafter referred to as the pump), with the use of health clean, high efficiency, low noise, resistance to mildly corrosive and compact structure, beautiful appearance, small size, light weight, the use of easy maintenance, and reliable sealing performance.


1. Application Scope
Product use chemical properties similar to the water of low viscosity, neutral, non-explosive, without solid particles or fibers, liquid, liquid transport can not pump the material with chemical resistance.
1. Boiler feed water and condensate systems;
2. High-rise building pipeline booster;
3. Water treatment, infiltration and filtration systems;
4. Food and beverage industry;
5. The pharmaceutical industry;
6. Agriculture, nurseries, golf course irrigation;
7. Fire boosts regulator system;
8. Catering, industrial cleaning systems;
9. Liquid, circulation and promotion;
10. Hot and cold water
2. Using Instruction
Medium temperature: Normal temperature -15°C ~ 70°C; Hot water -15°C ~ 100°C;
Flow range: 2-65m3/h;
Medium PH range: 3-11;
The maximum ambient temperature: 40°C;
The highest altitude: <=1000m (if higher than 1000m, pls tell us before order);
Minimum inlet pressure : >= -6m;
Maximum working pressure: 2.5mpa
Product use chemical properties similar to the water of low viscosity, neutral, non-explosive, without solid particles or fibers, liquid, liquid transport can not pump the material with chemical resistance.
1. Boiler feed water and condensate systems;
2. High-rise building pipeline booster;
3. Water treatment, infiltration and filtration systems;
4. Food and beverage industry;
5. The pharmaceutical industry;
6. Agriculture, nurseries, golf course irrigation;
7. Fire boosts regulator system;
8. Catering, industrial cleaning systems;
9. Liquid, circulation and promotion;
10. Hot and cold water
2. Using Instruction
Medium temperature: Normal temperature -15°C ~ 70°C; Hot water -15°C ~ 100°C;
Flow range: 2-65m3/h;
Medium PH range: 3-11;
The maximum ambient temperature: 40°C;
The highest altitude: <=1000m (if higher than 1000m, pls tell us before order);
Minimum inlet pressure : >= -6m;
Maximum working pressure: 2.5mpa

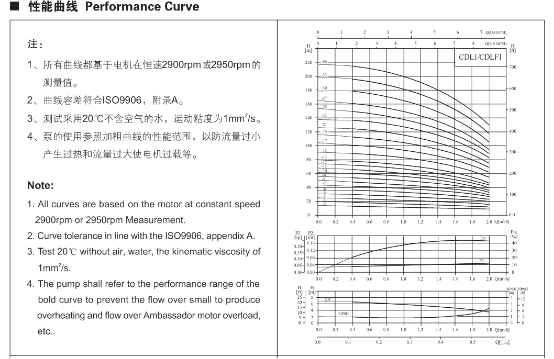

1. Performance curve

2. Specifications

2. Specifications
| Model | Flow(m3/h) | Head(mpa) | Power(kw) | Speed (rpm) | Caliber (mm) |
| CDL2-20 | 2 | 15 | 0.37 | 2900 | 25 |
| CDL2-150 | 2 | 112 | 1.5 | 2900 | 25 |
| CDL2-220 | 2 | 165 | 2.2 | 2900 | 25 |
| CDL2-260 | 2 | 195 | 3 | 2900 | 25 |
| CDL4-60 | 4 | 48 | 1.1 | 2900 | 32 |
| CDL4-100 | 4 | 80 | 2.2 | 2900 | 32 |
| CDL4-160 | 4 | 128 | 3 | 2900 | 32 |
| CDL4-220 | 4 | 176 | 4 | 2900 | 32 |
| CDL8-40 | 8 | 36 | 1.5 | 2900 | 40 |
| CDL8-80 | 8 | 72 | 3 | 2900 | 40 |
| CDL8-120 | 8 | 108 | 4 | 2900 | 40 |
| CDL8-200 | 8 | 180 | 7.5 | 2900 | 40 |
| CDL12-80 | 12 | 80 | 5.5 | 2900 | 50 |
| CDL12-110 | 12 | 111 | 7.5 | 2900 | 50 |
| CDL12-180 | 12 | 183 | 11 | 2900 | 50 |
| CDL16-30 | 16 | 34 | 3 | 2900 | 50 |
| CDL16-100 | 16 | 118 | 11 | 2900 | 50 |
| CDL16-160 | 16 | 189 | 15 | 2900 | 50 |
| CDL20-50 | 20 | 58 | 5.5 | 2900 | 50 |
| CDL20-80 | 20 | 94 | 11 | 2900 | 50 |
| CDL20-120 | 20 | 142 | 15 | 2900 | 50 |
| CDL20-170 | 20 | 202 | 18.5 | 2900 | 50 |
| CDL32-20 | 32 | 27 | 4 | 2900 | 65 |
| CDL32-80 | 32 | 109 | 15 | 2900 | 65 |
| CDL32-110 | 32 | 153 | 22 | 2900 | 65 |
| CDL32-140 | 32 | 196 | 30 | 2900 | 65 |
| CDL45-20 | 45 | 41 | 7.5 | 2900 | 80 |
| CDL45-50 | 45 | 101 | 18.5 | 2900 | 80 |
| CDL45-80 | 45 | 162 | 30 | 2900 | 80 |
| CDL45-130-2 | 45 | 259 | 45 | 2900 | 80 |
| CDL65-20 | 65 | 40 | 11 | 2900 | 100 |
| CDL65-40 | 65 | 80 | 22 | 2900 | 100 |
| CDL65-60-1 | 65 | 117 | 37 | 2900 | 100 |
| CDL65-80-1 | 65 | 161 | 45 | 2900 | 100 |
| more specifications pls feel free to contact us. | |||||
