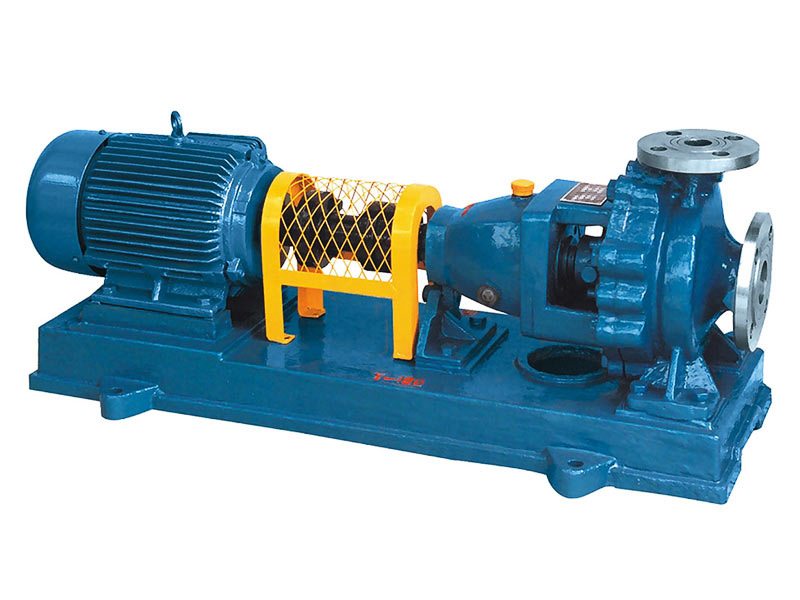

IS Single-stage Single-suction Centrifugal Pump

Flow:3~460m3/h

Head:4~125m

Caliber:32~200mm

Power:0.22~110kW

Speed:1450~2900r/min

Working Pressure:2.5MPa

If you want to get more product information please contact us!

Send E-mail Get Price

Product Overview

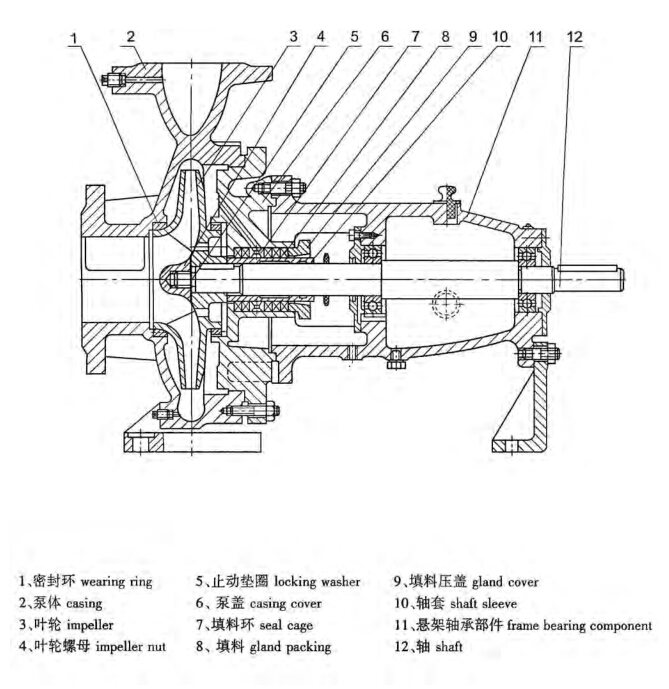

Product Structure
Application
Technical Data

Product Introduction of IS Single-stage single-suction centrifugal pump
Pumps type IS is a kind of axial suction centrifugal pump with single stage and suction. It is used to pump clear water and physical or chemical liquid similar to clear water below 85°C, and is widely applied to industries, to city water supply and drain, and also to agricultural and orchard irrigation.

Model Meaning
IS/IR/IH 100 - 80 - 160 A
* IS — clear water centrifugal pump
* IR — heat water centrifugal pump
* IH —chemical centrifugal pump
100 — inlet caliber
80 — outlet caliber
160 — impeller diameter
A — first incision

tab_boxEnding

Model	Flow(m3/h)	Head(mpa)	Power(kw)	Speed (rpm)	Caliber (mm)
IS50-32-125	12.5	20	2.2	2900	50
IS50-32-125	3.5	5	0.55	1450	50
IS50-32-160	12.5	32	3	2900	50
IS50-32-160	6.3	8	0.55	1450	50
IS50-32-200	12.5	50	5.5	2900	50
IS50-32-200	6.3	12.5	1.1	1450	50
IS50-32-250	12.5	80	11	2900	50
IS50-32-250	6.3	20	1.1	1450	50
IS65-50-125	25	20	3	2900	65
IS65-50-125	12.5	3	0.55	1450	65
IS65-50-160	25	32	5.5	2900	65
IS65-50-160	12.5	8	0.75	1450	65
IS65-40-200	25	50	7.5	2900	65
IS65-40-200	12.5	12.5	1.5	1450	65
IS65-40-250	25	80	15	2900	65
IS65-40-250	12.5	20	3	1450	65
IS65-40-315	25	125	30	2900	65
IS65-40-315	12.5	32	4	1450	65
IS80-65-125	50	20	5.5	2900	80
IS80-65-125	25	5	0.75	1450	80
IS80-65-160	50	32	7.5	2900	80
IS80-65-160	25	8	1.5	1450	80
IS80-50-200	50	50	15	2900	80
IS80-50-200	25	12.5	2.2	1450	80
IS80-50-250	50	80	22	2900	80
IS80-50-250	25	20	3	1450	80
IS80-50-315	100	125	37	2900	80
IS80-50-315	25	32	5.5	1450	80
IS100-80-125	100	20	11	2900	100
IS100-80-125	20	5	1.5	1450	100
IS100-80-160	100	32	15	2900	100
IS100-80-160	50	8	2.2	1450	100
IS100-80-161	100	50	22	2900	100
IS100-80-161	50	12.5	4	1450	100
IS100-80-162	100	80	37	2900	100
IS100-80-162	50	20	5.5	1450	100
IS100-80-163	100	125	75	2900	100
IS100-80-163	50	32	11	1450	100
IS100-80-164	200	50	45	2900	100
IS100-80-164	100	12.5	7.5	1450	100
IS100-80-165	200	80	75	2900	100
IS100-80-165	100	20	11	1450	100
IS125-100-315	200	32	15	1450	125
IS125-100-400	200	50	30	1450	125
IS150-125-250	200	20	18.5	1450	150
IS150-125-315	200	32	30	1450	150
IS150-125-400	200	50	45	1450	150
IS200-150-250	400	20	37	1450	200
IS200-150-315	400	32	55	1450	200
IS200-150-400	400	50	90	1450	200
more specifications pls feel free to contact us.
