Centrifugal Pump

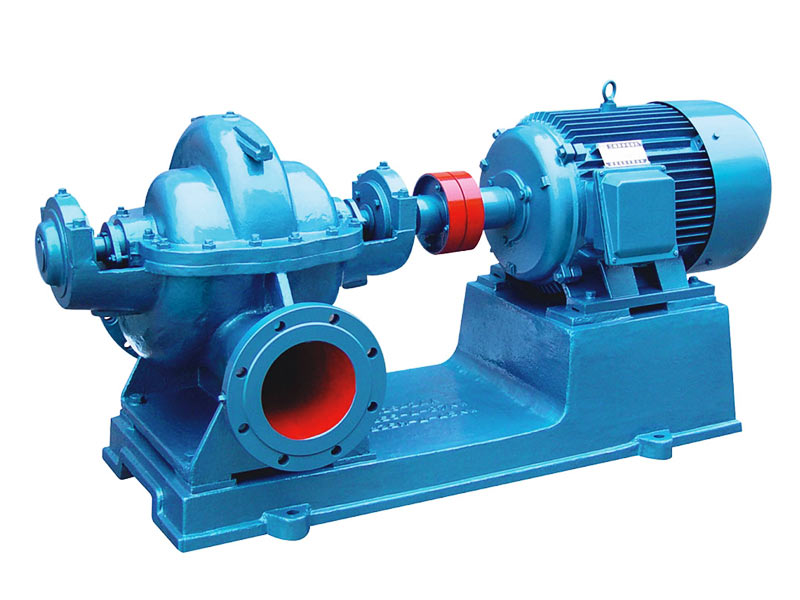

S Double Suction Split Case Pump

Performance summary
- Flow
- 130~5500m3 /h
- Head
- 10~160m
- Caliber
- 150~800mm
- Power
- 18.5~1600kW
- Speed
- 585~2950r/min
- Working Pressure
- 1.6MPa
Values are from archived product information. Confirm the current model datasheet before selection.
Product Introduction of S Double suction Split Case Pump
Model S pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 80°C, suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulics projects.
Model Meaning
150 S 78 A
150 — inlet caliber
S — double suction centrifugal pump
78 — Head
A —impeller outside diameter through first cutting
Model S pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 80°C, suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulics projects.
Model Meaning
150 S 78 A
150 — inlet caliber
S — double suction centrifugal pump
78 — Head
A —impeller outside diameter through first cutting


1. Application Scope
Use in factory, mine and power station supply and drainage, farmland irrigation and other water conservancy projects.
2. Using Instruction
The temperature of transported liquid shall not exceed 80
Use in factory, mine and power station supply and drainage, farmland irrigation and other water conservancy projects.
2. Using Instruction
The temperature of transported liquid shall not exceed 80

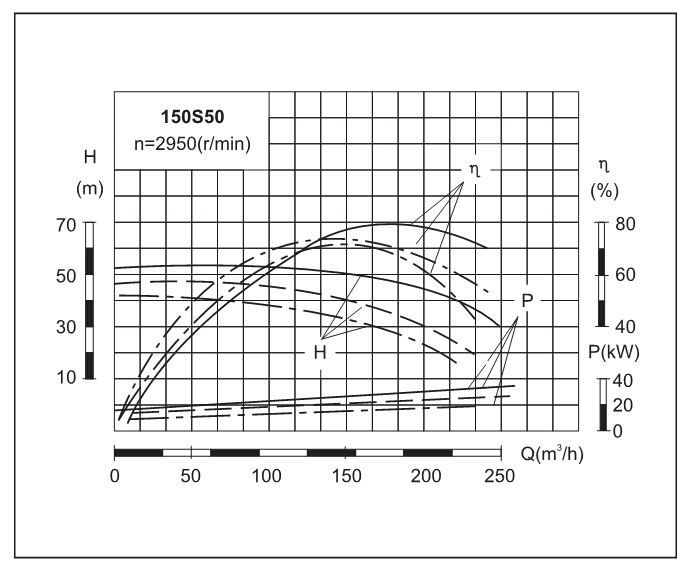

1. Performance curve

2. Specifications

2. Specifications
| Model | Flow(m3/h) | Head(mpa) | Power(kw) | Speed (rpm) | Caliber (mm) |
| 100S-90 | 80 | 90 | 37 | 2900 | 100 |
| 150S-50B | 133 | 36 | 22 | 2900 | 150 |
| 150S-78 | 160 | 78 | 55 | 2900 | 150 |
| 150S-100 | 180 | 97 | 75 | 2900 | 150 |
| 200S-42 | 280 | 42 | 45 | 2900 | 200 |
| 200S-63 | 280 | 63 | 75 | 2900 | 200 |
| 200S-95 | 280 | 95 | 132 | 2900 | 200 |
| 250S-14A | 432 | 11 | 18.5 | 1450 | 250 |
| 250S-24A | 414 | 20 | 37 | 1450 | 250 |
| 250S-39A | 468 | 30 | 55 | 1450 | 250 |
| 250S-65 | 485 | 65 | 132 | 1450 | 250 |
| 300S-12A | 675 | 9.7 | 30 | 1450 | 300 |
| 300S-19 | 790 | 19 | 55 | 1450 | 300 |
| 300S-32 | 790 | 32 | 90 | 1450 | 300 |
| 300S-58 | 790 | 58 | 200 | 1450 | 300 |
| 300S-90 | 790 | 90 | 315 | 1450 | 300 |
| 350S-16A | 1044 | 13 | 55 | 1450 | 350 |
| 350S-26 | 1260 | 26 | 132 | 1450 | 350 |
| 350S-44A | 1116 | 36 | 160 | 1450 | 350 |
| 350S-75B | 1080 | 55 | 220 | 1450 | 350 |
| 350S-125 | 1260 | 125 | 630 | 1450 | 350 |
| 500S-13 | 2020 | 13 | 110 | 970 | 500 |
| 500S-22 | 2020 | 22 | 185 | 970 | 500 |
| 500S-35 | 2020 | 35 | 280 | 970 | 500 |
| 600S-32 | 3170 | 32 | 355 | 970 | 600 |
| more specifications pls feel free to contact us. | |||||
